Southwark Metal 15_24X10 Trunk Duct Angle 24x10 in 45 Degree

Product Description

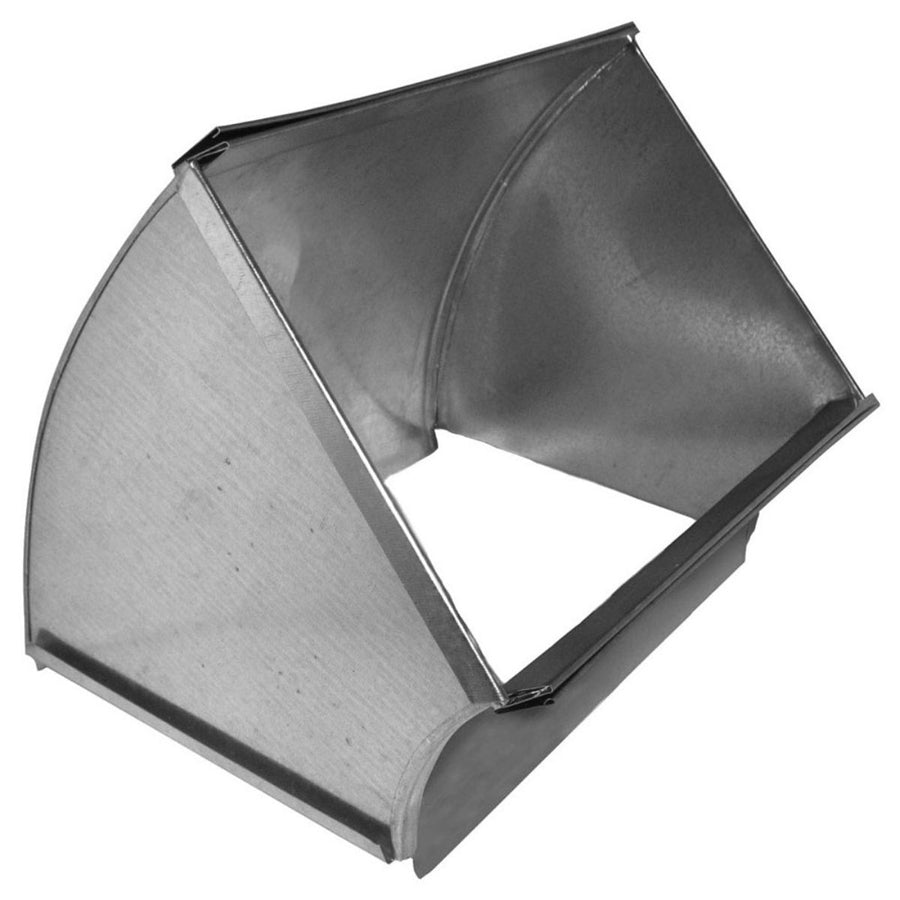

The SOUTHWARK METAL 15_24X10 is a sheet metal trunk duct angle fitting designed for directional turns in forced-air duct systems. Fabricated from hot dip galvanized steel, this shortway angle provides a 45-degree turn with a radius throat profile, which reduces turbulence and static pressure loss at the transition point. The vertical orientation suits standard trunk duct installations in residential and light commercial HVAC systems. Frame dimensions are 24 inches by 10 inches on both the inlet and outlet. Installation is typically handled by sheet metal mechanics or HVAC installers during duct fabrication or system retrofit work.

This fitting is used wherever a 45-degree shortway directional change is needed in a rectangular trunk duct run. The shortway configuration is common in applications where ceiling clearance or structural constraints limit the available turning radius. The radius throat design helps maintain airflow velocity and reduces noise compared to square-throat alternatives. Sized at 24 inches by 10 inches inlet and outlet, it fits directly into standard trunk duct lines of matching cross-section without reducers or offsets.

Key Features

• 45-degree angle for directional trunk duct turns
• Shortway, vertical orientation suits tight-clearance installations
• Radius throat design reduces static pressure loss and airflow noise
• Hot dip galvanized steel construction resists corrosion in conditioned air environments
• Matching 24 inch by 10 inch inlet and outlet for straight-through sizing
• Meets ACCA and SMACNA applicable standards

Compatibility

Designed as an OEM-style replacement or new-construction fitting for rectangular sheet metal trunk duct systems sized at 24 inches by 10 inches, in accordance with ACCA and SMACNA duct construction standards.

Installation Notes

Installation is performed by licensed sheet metal mechanics or HVAC technicians following SMACNA duct construction guidelines. The air handling system should be fully powered down before any duct modification or fitting installation. Fittings should be sealed at all joints with UL-listed duct sealant or mastic per local mechanical code requirements. Do not install without proper support hangers per applicable codes.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Frame Size: 24 inches x 10 inches
• Size A (Inlet): 24 inches x 10 inches
• Size B (Outlet): 24 inches x 10 inches
• Angle: 45 degrees
• Type: Shortway, Vertical, Radius Throat
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 15_24X10
