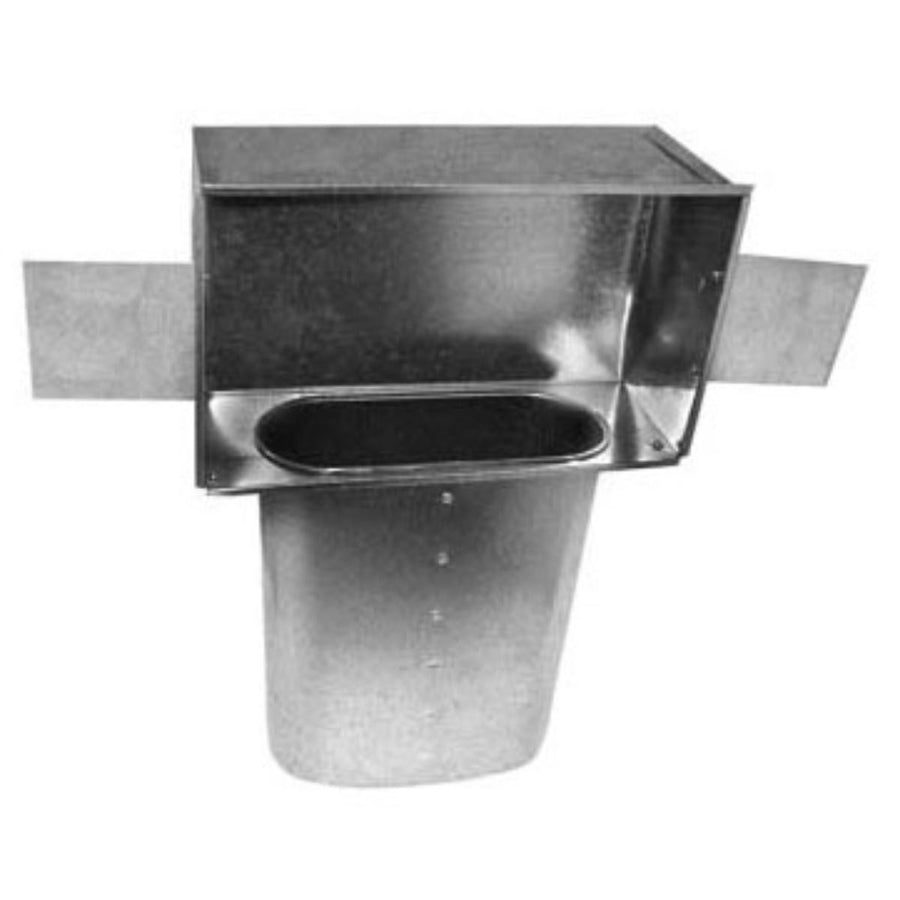

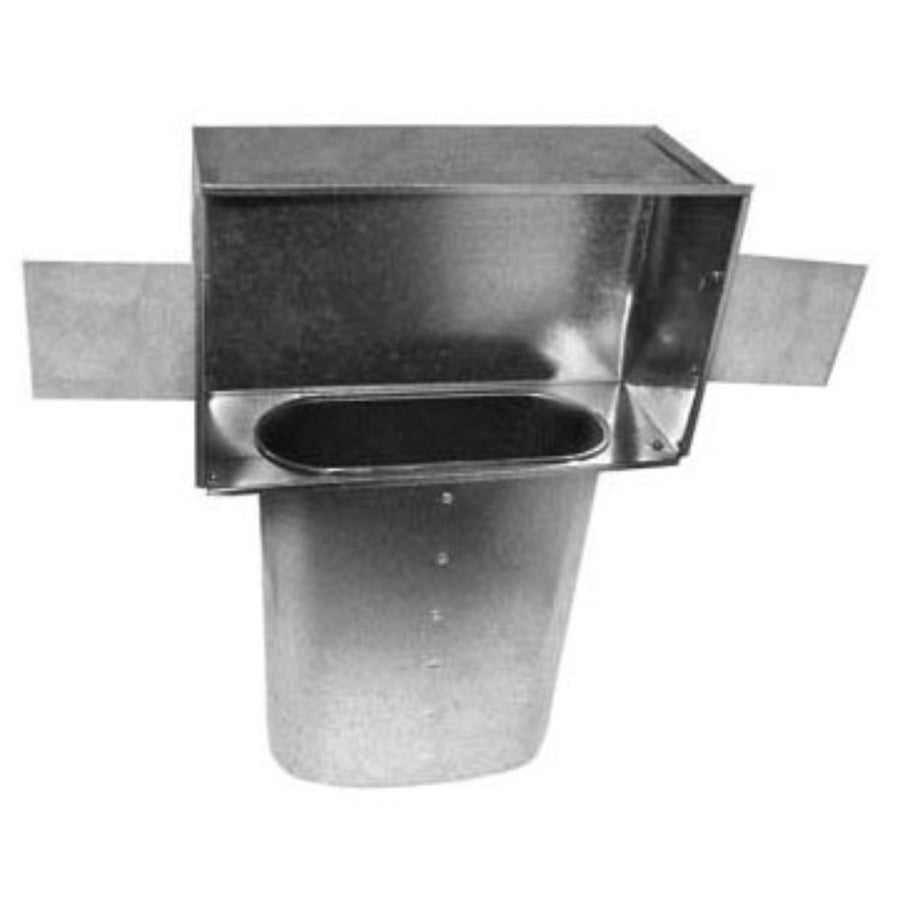

Southwark Metal 110_12X6-7 Oval Stackhead 12x6x7 in

Product Description

The SOUTHWARK METAL 110_12X6-7 is an oval pipe stackhead fabricated from hot dip galvanized steel, designed for use in residential and light commercial HVAC duct systems. A stackhead fitting transitions an oval duct run at a floor, wall, or ceiling penetration, connecting the main trunk or branch duct to a register boot or floor-to-wall stack assembly. Measuring 12 inches by 6 inches by 7 inches, this fitting is built to ACCA and SMACNA standards, making it a code-appropriate choice for forced-air distribution installations. Licensed HVAC sheet metal mechanics and duct installers are the typical trade for this component.

This stackhead is suited for new construction and retrofit duct system work where an oval configuration is required for space-constrained joist bays, interior wall cavities, or under-floor stack installations. The 12 x 6 x 7 inch oval profile accommodates common residential duct sizing used in forced-air heating and cooling systems. Fabrication from hot dip galvanized steel provides corrosion resistance appropriate for attic, crawlspace, and conditioned-space duct runs.

Key Features

• Oval profile sized at 12 inches x 6 inches x 7 inches for space-constrained duct runs
• Hot dip galvanized steel construction for corrosion resistance in varied install environments
• Meets ACCA and SMACNA applicable standards for duct fabrication and system design
• Stackhead configuration for floor, wall, or ceiling duct-to-register transitions
• Compatible with oval duct branch and trunk systems common in residential forced-air HVAC

Compatibility

Designed as an OEM-style sheet metal fitting for residential and light commercial forced-air duct systems requiring an oval stackhead transition at floor or wall register locations.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified sheet metal mechanic in accordance with SMACNA duct construction standards and local mechanical codes. Shut down the air handling system and relieve any system pressure before modifying or connecting ductwork. Secure all seams and connections with appropriate sheet metal screws and UL-listed duct sealant or mastic per local code requirements. Do not compress or distort the oval profile during installation, as dimensional changes will affect airflow and system performance.

Technical Specifications

• Width: 12 inches
• Height: 6 inches
• Depth: 7 inches
• Material: Hot Dip Galvanized Steel
• Type: Oval
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 110_12X6-7
