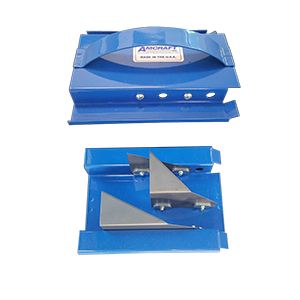

Southwark Metal 1102 Ductboard 4-in-1 End Cut-off Tool

Product Description

The SOUTHWARK METAL 1102 is a 4-in-1 fiberglass ductboard fabrication hand tool designed for end cut-off work on 1-inch ductboard. By swapping blades, the tool produces four distinct end cut-off profiles without requiring separate dedicated tools for each configuration. All blades needed to create every combination are included. This tool is intended for HVAC sheet metal fabricators and duct installers who work with fiberglass ductboard systems and need accurate, repeatable end cuts in the field or shop.

The 1102 is suited for residential and light commercial HVAC ductwork fabrication involving 1-inch fiberglass ductboard panels. It supports Cut 5 configurations and covers multiple end cut-off styles from a single tool body. Installers fabricating supply or return duct runs from ductboard benefit from the blade-change system, which eliminates the need to carry multiple single-purpose cutting tools on the job.

Key Features

• Produces 4 different end cut-off profiles with a single tool body
• Blade swap system allows quick configuration changes without additional tools
• All blades for every cut combination included in the package
• Designed for 1-inch fiberglass ductboard material
• Supports Cut 5 end cut-off configurations

Compatibility

Designed for use with 1-inch fiberglass ductboard panels in HVAC duct fabrication applications.

Installation Notes

This tool is used by HVAC fabricators and duct installers during ductboard panel preparation, prior to assembly and installation. Follow SMACNA fiberglass ductboard fabrication guidelines for proper cut profiles and joint configurations. Inspect blades before each use and replace any damaged blades to maintain cut quality and accuracy. Always wear appropriate personal protective equipment, including gloves and eye protection, when cutting fiberglass ductboard material.

Technical Specifications

• Compatible Ductboard Thickness: 1 inch
• Cut Configurations: 4-in-1 end cut-off
• Material: Fiberglass ductboard (workpiece)
• Blades Included: Yes, all blades for each combination
• Supported Cut Type: Cut 5

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 1102
