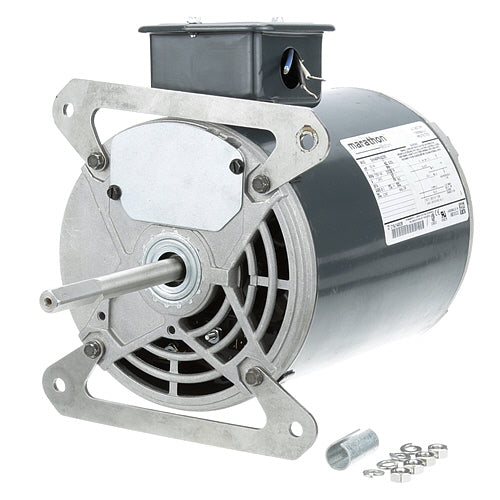

MOTOR KIT 115V 1/3-.09HP 1P 1170128 for Southbend SOU1170128

Product Description

This item for Southbend MPN 1170128 is a motor kit designed for various oven models. It operates at one hundred fifteen volts and can handle a power range of one-third to point zero nine horsepower. This kit includes key components needed for installation and operation.

• 115V power supply
• Compatible with Southbend oven series V, VS, X, XE, XS, XSE
• Includes a bushing adaptor for shaft compatibility

Product Highlights

This motor runs at two speeds, providing versatility in operation and is suitable for both residential and commercial cooking applications.

Product Information

Standard Information

• Power Supply: 115V
• Horsepower: 1/3 - 0.09 HP

Technical Specifications

• Dimensions: 12 x 8.6 x 10 inches
• Weight: 28 pounds
• Rotation: CW (Clockwise)
• Speed: 1725 / 1140 RPM
• AMP Rating: 7.2 / 4.5 AMP
• Shaft Size: 1/2 x 4-1/2 inches with 2 flats
• Bushing Adaptor: 1/2 x 5/8 x 1-1/4 inches
• Blower Wheel Compatibility: 26-4052 (10 inch diameter)
