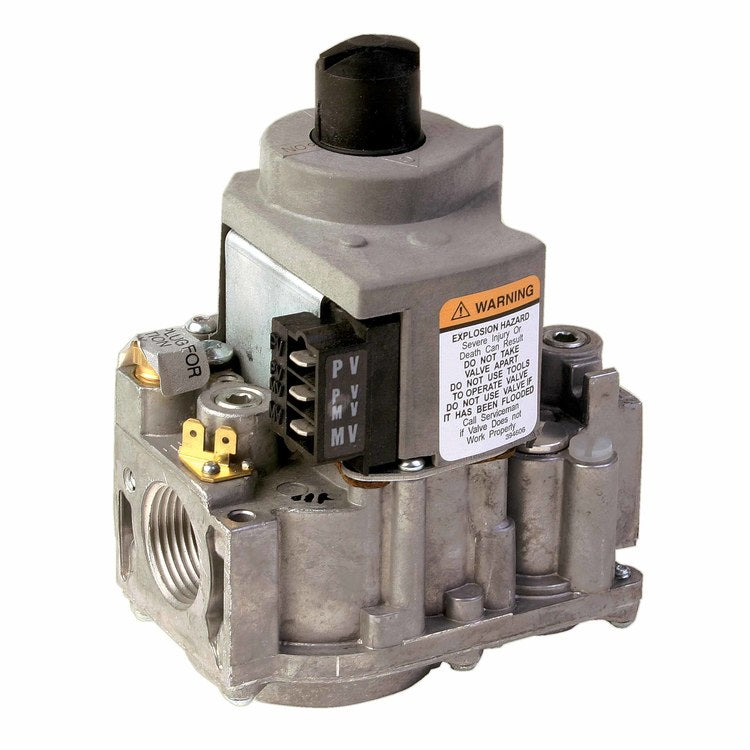

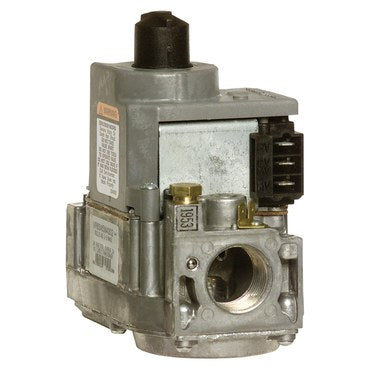

Source1 VR8345M4302 Natural Gas Valve

Product Description

The Source1 VR8345M4302 is a gas control designed for various ignition methods in gas-fired appliances. This unit operates with natural, manufactured, or LP gas and includes a converter kit for switching from natural to LP gas. With its straight-through body pattern, this combination gas control is ideal for direct spark ignition, hot surface ignition, or intermittent pilot ignition.

• Universal electronic ignition gas control
• Compatible with multiple ignition systems

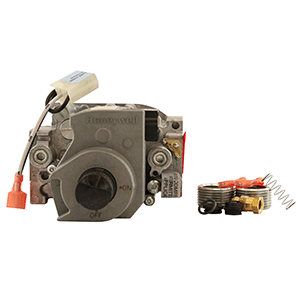

• Includes a kit for natural to LP gas adaptation

Product Highlights

This gas valve is engineered for reliability in multiple applications, making it a versatile choice for heating systems.

Product Information

Standard Information

• Brand: Resideo
• Product Type: Intermittent Pilot

Technical Specifications

• End Connection: NPT
• Size: 3/4 inch
• Port Type: Standard Open
• Pressure: 1/2 PSI
• Voltage: 24 VAC
• Number of Stages: 1
• BTU: 300K BTU
• Temperature: -40 to 175 degrees F
• Fuel: Natural Gas
• Width: 4-1/16 inches
• Height: 5-3/8 inches
• Depth: 2-11/16 inches
