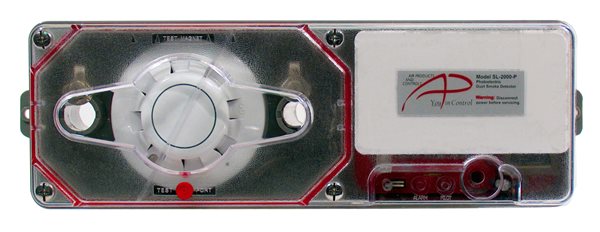

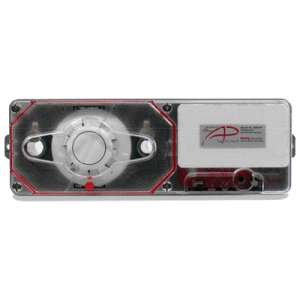

SOURCE1 SL-2000-P Photoelectric Duct Smoke Detector

Product Description

The SOURCE1 SL-2000-P is a photoelectric duct smoke detector. It is designed for early smoke detection in HVAC ducts. This unit is suitable for commercial, industrial, and residential applications. It helps prevent the recirculation of smoke by air handling systems. The device meets NFPA and ICC standards.

• Detects smoke and combustion products in HVAC ducts.
• Prevents smoke recirculation in air handling systems.
• Compatible with remote accessories like horns and strobes.

Product Highlights

Product Information

Standard Information

• Brand: SOURCE1
• MPN: SL-2000-P

Technical Specifications

• Detection Principle: Photo-electric light scattering
• Operating Temperature Min: 0 °C
• Operating Temperature Max: 60 °C
• Humidity Min: 10% RH
• Humidity Max: 85% RH
• Air Velocity Min: 100 FPM
• Air Velocity Max: 4000 FPM
• Electrical Rating: 10 A @ 115 Vac
• Weight: 2.5 lb
• Color: Grey
• Materials: Plastic, Polycarbonate
• Product Height: 57.15 mm
• Product Length: 342.9 mm
• Product Width: 114.3 mm
• Number Of Sampling Pipe Inlets: 1
• Exhaust Airpipe Outlet: 18.8 mm
• Housing Type: Standard enclosure
• Status Indicator: Alarm Red
• Flashing LED: Yes
• Standards: UL 268A, ULC S529
