Source1 ICM517 Single Phase Surge Protective Device

Product Description

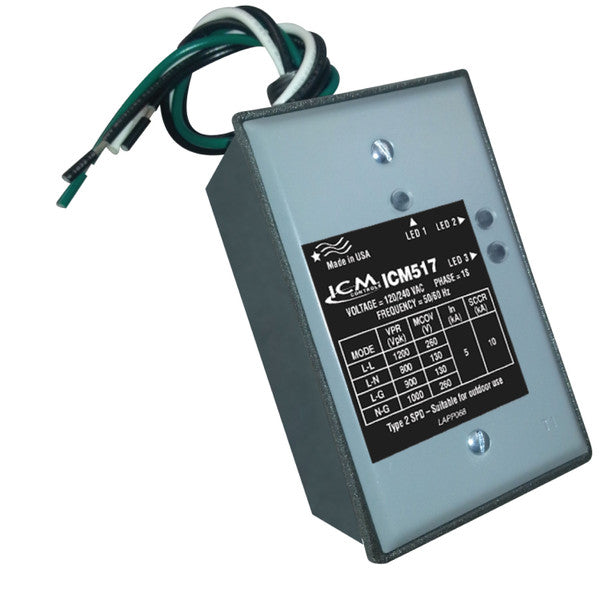

The Source1 ICM517 is a single-phase surge protective device that safeguards electrical systems against voltage spikes. It has a robust NEMA Type 3R rated enclosure suitable for both indoor and outdoor installations. This device is designed for 120/240 volt single-phase systems and is UL Listed as a Type 2 device, which includes LED status indicators for user convenience.

• Provides surge protection for single-phase electrical systems.
• Features a metal enclosure rated NEMA Type 3R for indoor/outdoor use.
• Offers protection in L-L, L-N, L-G, and N-G modes.

Product Highlights

The ICM517 is built to ensure reliable surge protection for various electrical configurations, enhancing system stability and longevity.

Product Information

Standard Information

• Service Voltage: 120/240 volt, single phase
• UL Listed: Yes

Technical Specifications

• Maximum Surge Current: 100,000 Amps
• Maximum Energy Dissipation: 1,020 Joules
• Installation Point: Electrical Panel, Service Disconnect
• AC Protection Modes: L-L, L-N, L-G, N-G
• Conduit Connection: 3/4 inch
• Dimensions: 5 inches long x 2.78 inches wide x 2.16 inches deep
• Weight: 0.55 lbs.
