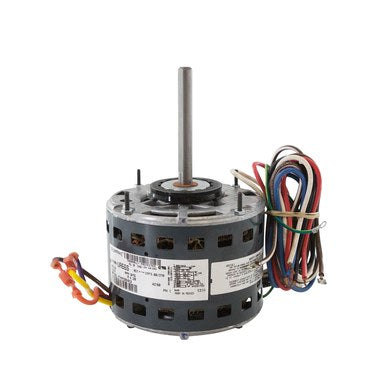

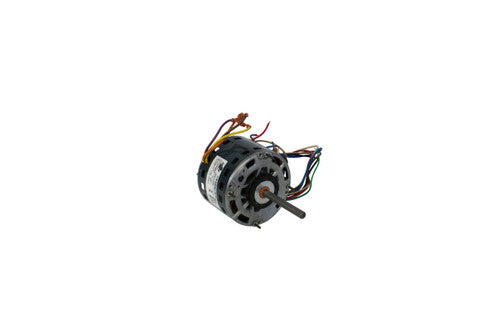

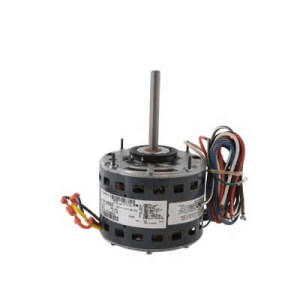

SOURCE1 FHM3583 Direct Drive Blower Motor 1/4 HP Replacement MPN

Product Description

The SOURCE1 FHM3583 is a direct drive blower motor suitable for HVAC systems. It operates at a power of 1/4 horsepower with a voltage of 115 volts. This motor offers three-speed settings and reversible rotation making it versatile for various heating and cooling applications.

• 1/4 HP motor with three-speed settings
• Operates at 1075 RPM
• Permanently lubricated and thermally protected

Product Highlights

This blower motor is designed as a direct replacement for part number S1-FHM3583 and features continuous airflow cooling for reliable operation.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part #: 5KCP39EGZUA66S

Technical Specifications

• Horsepower: 1/4 HP
• Voltage: 115V
• Hertz: 60
• Phases: 1
• Output Current: 4.2
• RPM: 1075
• Speed Settings: 3
• Rotation: Reversible
• Frame: 48Y
• Shaft Diameter: 1/2
• Shaft Length: 4
• Height: 4.5
• Outer Diameter: 5.5
• Thermally Protected: True
• Permanently Lubricated: True
• Insulation Class: B
• Motor Cooling: Continuous Air Over
• Capacitor Needed: 5MFD @370V
• Item Weight: 179 ounces
• Product Type: 3 Speed
