Source1 A47 Drive Belt

Product Description

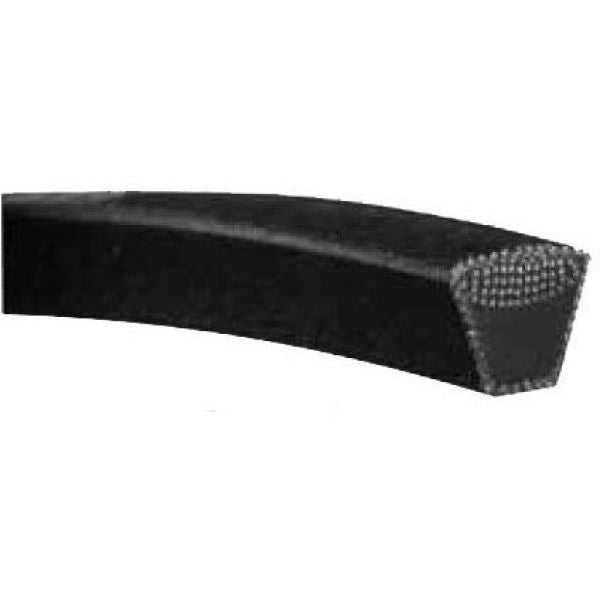

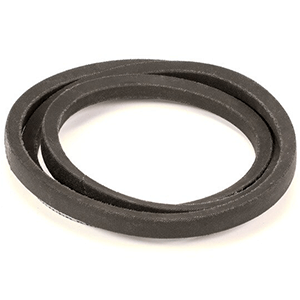

The Source1 A47 drive belt is made from synthetic rubber. It is a four-lap (4L) type belt with a section size of A, 4L. The top width is one-half inch, and the thickness is five-sixteenths inch. The inside length is forty-eight inches, while the outside circumference measures forty-nine inches. This belt is designed for use in applications that operate within a temperature range of negative thirty-five to one hundred forty degrees Fahrenheit.

• Material: Synthetic Rubber
• Outside Circumference: 49 inches
• Temperature Rating: -35 to 140 Deg F

Product Highlights

Product Information

Standard Information

• Brand: Source1
• Manufacturer: Johnson Controls

Technical Specifications

• Manufacturer Part Number: S1-A47
• UPC: 883982103217
• Alternate Part Number 1: 4L-490
• Applicable Standard: RMA IP-20
• Inside Length: 48 inches
• Outside Circumference: 49 inches
• Section Size: A, 4L
• Thickness: 5/16 inch
• Top Width: 1/2 inch
• Type: 4L
• UNSPSC: 26111801
• Temperature Rating: -35 to 140 Deg F
• Weight: 0.31 lb
