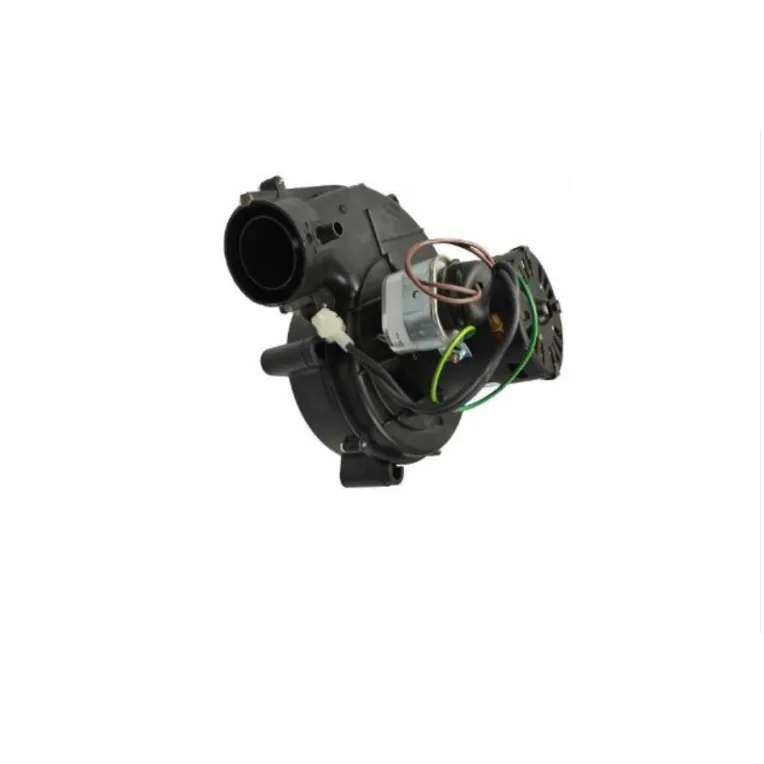

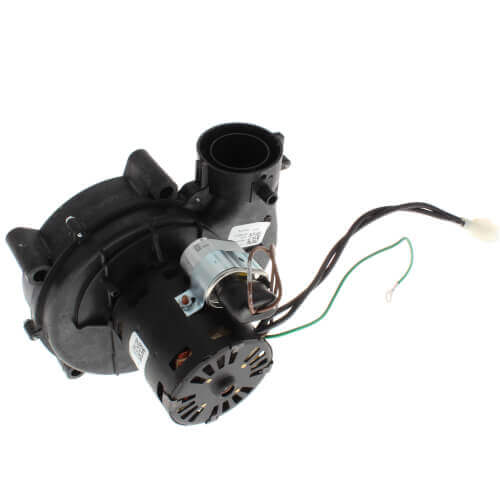

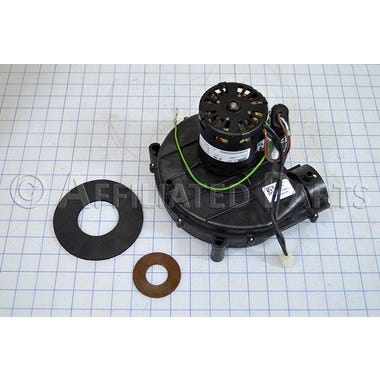

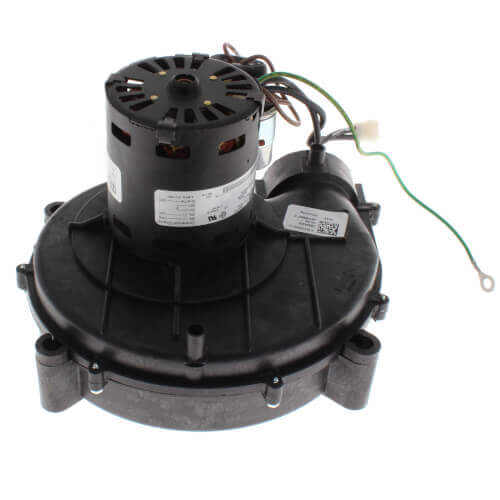

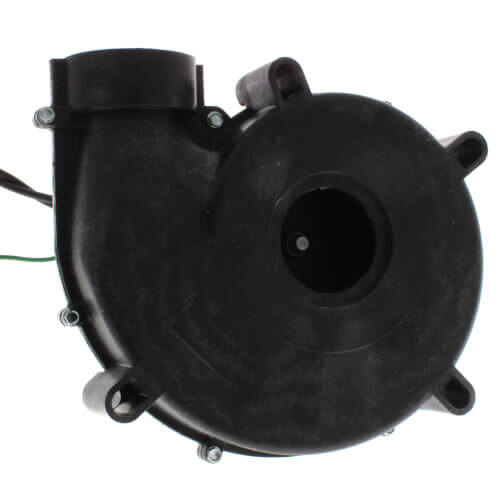

Source1 32425960000 Venter Assembly with Motor and Gasket

Product Description

The Source1 32425960000 is a venter assembly equipped with a motor and gasket, specifically designed for Coleman and Evcon furnaces. This unit operates on 115 volts, is single-phase, and runs at 60 Hz with a speed of 3450 RPM. The motor rotates counter-clockwise when viewed from the end opposite the shaft and has a full load amperage rating of 0.70.

• Includes vent fan, motor, and gasket
• Operates at 3450 RPM
• Designed for various furnace applications

Product Highlights

This assembly is essential for effective venting in heating systems, ensuring efficient exhaust and optimal performance of your furnace.

Product Information

Standard Information

• Brand: Source 1
• Manufacturer: York

Technical Specifications

• Bearing Type: Ball
• Description: Vent Fan w/ Motor & Gasket 3450 RPM, 115V, Single-Phase, 60 Hz, CCW
• Full Load Amps: 0.70
• RPM: 3450
• Rotation: Counter Clockwise End Opposite Shaft
• Shaft Diameter: 0
• Input Voltage: 115V
• Weight: 5.60 lbs
• Phase: Single
