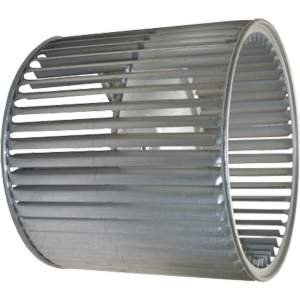

Source1 2642198000 Blower Wheel 10x9 Clockwise 0.50 Inches Bore

Product Description

The SOURCE1 2642198000 is a replacement blower wheel designed for use in residential and light commercial HVAC systems. This wheel measures 10 inches in diameter by 9 inches in width and features a 0.50 inches bore size. It is built for clockwise rotation, which is a critical specification that must match the original equipment motor and housing configuration. Installing a wheel with the wrong rotation direction will result in reduced airflow and system inefficiency.

Blower wheels are a core component of air handling units, furnaces, and fan coil units. They pull air across the heat exchanger or evaporator coil and push it through the duct system. When a blower wheel becomes unbalanced, clogged with debris, or physically damaged, it can cause noise, vibration, reduced airflow, and motor strain. Replacing the wheel with a direct OEM-equivalent part like the SOURCE1 2642198000 restores proper airflow performance and protects the blower motor from excess load.

HVAC technicians rely on exact-specification blower wheels to maintain manufacturer-rated system performance. The 10x9 size with a 0.50 inches bore is a common configuration found across a wide range of forced-air systems. Confirming bore size, wheel diameter, wheel width, and rotation direction before installation ensures a correct fit. This wheel is a standard squirrel cage design, which is the most widely used blower wheel type in residential HVAC equipment. It is suited for ducted air distribution in heating and cooling applications.

• 10 inches diameter by 9 inches width squirrel cage blower wheel for forced-air HVAC systems
• Clockwise rotation design must be matched to motor and housing specifications
• 0.50 inches bore size for a secure fit on the blower motor shaft

Product Highlights

The SOURCE1 2642198000 blower wheel is a direct replacement component for HVAC systems requiring a 10x9 clockwise wheel with a 0.50 inches bore. It restores proper airflow and system performance when an original wheel is damaged or worn.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2642198000

Technical Specifications

• Wheel Diameter: 10 inches
• Wheel Width: 9 inches
• Bore Size: 0.50 inches
• Rotation Direction: Clockwise
• Wheel Type: Squirrel Cage
• Application: Residential and Light Commercial HVAC Air Handlers and Furnaces
