Source1 2541336000 Temperature Control Auto Reset 145 Open 105 Close

Product Description

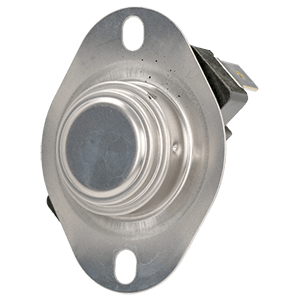

The Source1 2541336000 is a temperature control switch designed for use in HVAC systems where automatic temperature-based switching is required. This control opens at 145 degrees Fahrenheit and closes at 105 degrees Fahrenheit, providing a reliable 40-degree differential that protects equipment and maintains safe operating conditions. The auto reset feature means the switch automatically returns to its closed position once the temperature drops back to the close setpoint, eliminating the need for manual intervention after a high-temperature event.

Temperature controls like the Source1 2541336000 are essential components in heating and cooling equipment. They act as safety or operating switches that respond to changing temperatures within a system. When a furnace, air handler, heat pump, or other HVAC unit reaches a temperature outside the safe range, the control interrupts or restores the circuit as needed. This helps prevent overheating, protects motors, heat exchangers, and other components, and keeps the system running within designed parameters.

HVAC technicians rely on temperature controls during both new installations and service calls. When diagnosing a system that is shutting down unexpectedly or failing to cycle correctly, the temperature control switch is one of the first components to test and inspect. Replacing a faulty control with a direct-fit part like the Source1 2541336000 restores proper operation quickly. The auto reset design reduces nuisance lockouts caused by minor temperature spikes, making it well suited for residential and light commercial HVAC applications.

This part is compatible with Source1 equipment and meets the specifications required for accurate and dependable temperature switching in forced air systems.

• Opens at 145 degrees Fahrenheit to protect equipment from overheating
• Closes at 105 degrees Fahrenheit to restore circuit operation automatically
• Auto reset design requires no manual reset after a temperature event

Product Highlights

The Source1 2541336000 temperature control switch delivers precise automatic switching at defined temperature setpoints, protecting HVAC equipment and reducing service interruptions in residential and commercial systems.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2541336000

Technical Specifications

• Open Temperature: 145 degrees Fahrenheit
• Close Temperature: 105 degrees Fahrenheit
• Reset Type: Auto Reset
• Temperature Differential: 40 degrees Fahrenheit
