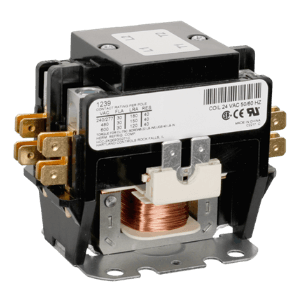

Source1 2432004000 Contactor 2 Pole Normally Open 30A 24V

Product Description

The Source1 2432004000 is a 2-pole normally open contactor rated at 30 amps with a 24-volt coil. Contactors are essential switching devices used throughout HVAC systems to control the flow of power to components like compressors and condenser fan motors. When the thermostat calls for cooling or heating, the control board sends a 24-volt signal to the contactor coil. The coil energizes and pulls in the contacts, allowing line voltage to pass through to the load. The Source1 2432004000 handles this job with a 30-amp rating, making it suitable for single-phase residential and light commercial condensing units. A 2-pole normally open design means both poles are open at rest and close together when the coil is energized, providing a clean break and reliable make across both lines of the load circuit. HVAC technicians rely on contactors as one of the most commonly replaced parts in a condensing unit. Heat, arcing, pitting, and insect damage are all frequent causes of contactor failure. Having a reliable replacement like the Source1 2432004000 on the service truck saves time and avoids repeat trips. The 24-volt coil voltage matches the standard control circuit voltage used in residential HVAC systems across North America. This makes the 2432004000 a direct-fit or compatible replacement in a wide range of split system air conditioners, heat pumps, and package units. HVAC technicians, refrigeration mechanics, and building maintenance professionals should keep this contactor on hand for fast compressor and condenser motor replacement calls. It fits into standard contactor mounting positions and wires directly into existing control and power circuits without modification.

• 2-pole normally open configuration controls both lines of the load circuit simultaneously
• 30-amp rating suitable for residential and light commercial compressor and condenser fan motor loads
• 24-volt coil voltage matches standard HVAC control circuit voltage for direct compatibility

Product Highlights

The Source1 2432004000 is a dependable 30-amp, 24-volt, 2-pole normally open contactor built for HVAC system use. It is a go-to replacement part for compressor and condenser fan motor control in residential and light commercial equipment.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2432004000

Technical Specifications

• Pole Configuration: 2 Pole Normally Open
• Amperage Rating: 30A
• Coil Voltage: 24V
• Contact Type: Normally Open
• Application: HVAC Compressor and Condenser Fan Motor Control
