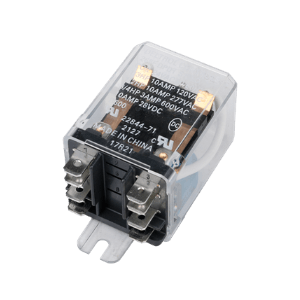

Source1 2423972000 Control Relay 24V 50/60 Hz Dpdt

Product Description

The Source1 2423972000 is a 24-volt DPDT control relay designed for use in HVAC systems and related climate control equipment. DPDT stands for Double Pole Double Throw, meaning this relay has two independent switching circuits that can each connect to one of two output positions. This design gives technicians flexible wiring options when controlling multiple loads or switching between circuits in a single operation. The relay operates on a 24-volt coil voltage, which is the standard control voltage used in the vast majority of residential and light commercial HVAC systems. It is rated for both 50 Hz and 60 Hz power frequencies, making it suitable for use in North American equipment as well as international applications where voltage frequency may differ. Control relays like the Source1 2423972000 are workhorses in HVAC control panels, air handlers, heat pump systems, rooftop units, and packaged equipment. They serve as the switching link between low-voltage thermostat signals and higher-voltage components such as contactors, blower motors, compressors, and auxiliary heating elements. When the 24-volt control circuit is energized, the relay coil pulls in the armature and closes or opens the load-side contacts, allowing the system to respond to thermostat commands. HVAC technicians rely on quality control relays for reliable, repeatable switching during every heating and cooling cycle. A failed or intermittent control relay can cause symptoms such as no cooling, no heating, blower motor faults, or erratic system behavior. Replacing a faulty relay with a direct OEM-sourced component like the Source1 2423972000 helps restore proper system operation quickly and with confidence. This relay is well suited for HVAC service technicians, maintenance engineers, and equipment installers who need a dependable replacement part that meets original equipment specifications.

• DPDT configuration provides two independent switching circuits for versatile control wiring
• 24-volt coil voltage matches standard HVAC low-voltage control systems
• Compatible with 50 Hz and 60 Hz power frequencies for broad application use

Product Highlights

The Source1 2423972000 control relay delivers reliable 24V DPDT switching for HVAC control panels and air handling equipment. Its dual-pole dual-throw design supports flexible circuit configurations across a wide range of residential and commercial HVAC applications.

Product Information

Standard Information

• Brand: SOURCE1
• Manufacturer Part Number: 2423972000

Technical Specifications

• Coil Voltage: 24V
• Frequency: 50/60 Hz
• Relay Type: DPDT (Double Pole Double Throw)
• Application: HVAC Control Systems
