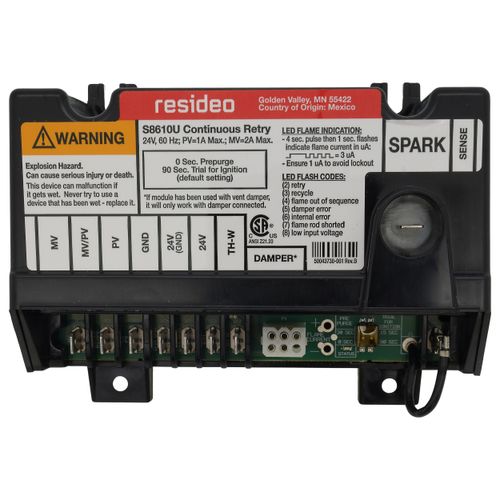

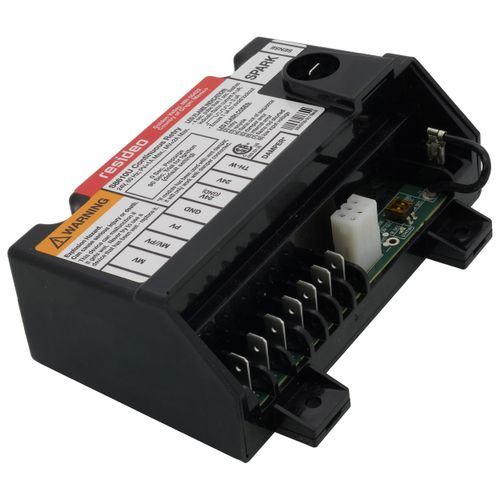

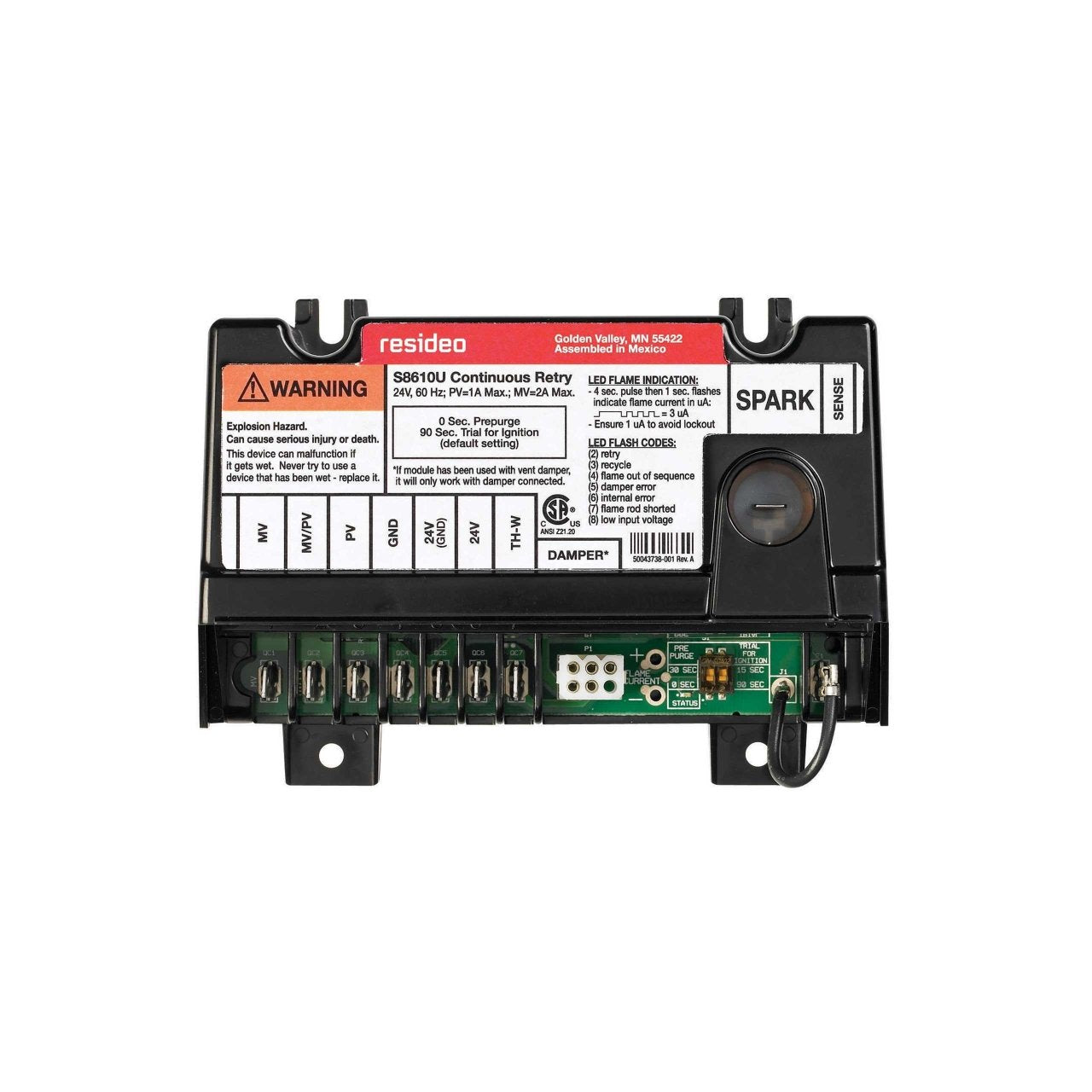

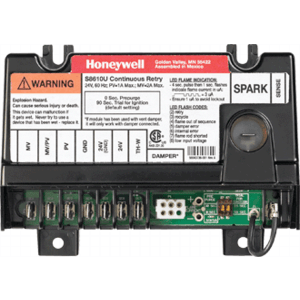

Source 1 S8610U3009 Intermittent Pilot Control Universal Intermittent Pilot Control Module

Brand: SOURCE 1
SKU: S8610U3009
Availability: Out Of Stock
$453.45
$453.45
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The SOURCE 1 S8610U3009 universal intermittent pilot control module provides electronic control of most intermittent pilot ignition systems used on gas-fired furnaces, boilers, and other heating appliances. It has continuous retry trial time, configurable lockout timing of 15 or 90 seconds and configurable prepurge of 30 seconds or no prepurge.

  • Provides ignition sequence, flame monitoring and safety shutoff for intermittent pilot central furnaces and heating appliances
  • Provides 100 percent pilot gas shutoff if pilot fails to light; after 6-minute delay, trial for ignition is repeated. Ignition trial/delay sequence is repeated until the appliance lights or call for heat is removed
  • For use with Natural or LP gas

Product Highlights

The S8610U3009 module is for use in single rod or dual rod/remote sense applications. Includes spark cable adapters to allow field replacement of both Honeywell and competitive controls without replacing existing spark cable.

Product Information

Standard Information

  • Brand: SOURCE 1
  • Manufacturer Part Number: S8610U3009
Technical Specifications
Ignition System Type
Intermittent Pilot
Ignition Sequence
Continuous Retry
Typical Gas Control
VR8204, VR8304
Type of Gas
Natural or LP
Flame Sense
Two Rod, Single Rod
Ignition Source
Internal high voltage spark generator
PrePurge
Configurable to 30 sec or no prepurge
Ignition Trials To Lockout
continuous retry
Lockout Timing
Configurable to 15 seconds or 90 seconds
Ignition Trial Time
15 or 90 seconds
Maximum Valve Load
1 A Pilot, 2A Main @ 165 °F, 1 A Pilot, 1A Main @ 175 °F
Typical Ignition Hardware
Q345, Q3451, Q3452
Dimensions
3-15/16" high x 5-7/16" wide x 2-5/8" deep
Electrical Ratings
24 Vac
Frequency
50 Hz
Maximum Ambient Temperature
165 °F, 74 °C
Approvals and Standards
CSA: Design Certified
Includes
Spark cable adapters to allow field replacement of both Resideo and competitive controls without replacing existing spark cable
Between Trial Time (sec)
5 minute delay after failed trial for ignition
Flame Failure Response Time
2 seconds maximum
Ignition Type
Intermittent Pilot
Application
Intermittent Pilot
Product Features
For use with natural or LP gas, For use in single rod or dual rod or remote sense applications, Configurable to 30 sec, Universal Pilot Ignition Module, Intermittent, 24 V AC, Replaces over 400 White-Rodgers, Robertshaw and Honeywell intermittent pilot ignition modules, Provides ignition sequencing, flame monitoring and safety shutoff for intermittent pilot warm air furnaces and heating appliances, Provides 100 percent pilot gas shutoff if pilot fails to light after 6 min delay., No prepurge
Type of Fuel
Natural Gas, LPG
Pilot Type
Intermittent
Ignition Between Trail Time
5 minute delay after failed trial for ignition.
Number of Ignition Trials to Lockout
0
Early Spark Termination
Yes
Auto Reset Delay Timing
1 min
Thermostat Anticipator Rating
0.2 A plus pilot valve rating plus main valve rating
Current Draw
1 A Pilot Valve|2 A Main Valve
Power Consumption
2 VA
Load Relay Rating
24 V AC (Amps) 1 A Pilot, 2 A Main at 165 °F, 1A Pilot, 1A Main at 175 °F
Igniter-Sensor Rod
Dual, Single
Product Depth
2.63 in, 67mm
Power Supply Frequency
60 Hz
Operating Voltage
24 V AC
Compatible With
Intermittent pilot warm air furnaces and heating appliances
For Use With
Q345, Q348, Q362, Q373, Q381, Q179C, Q354, Q345, Q348, Q362, Q373, Q381
Do Not Use With
Do Not Use the 24 V Terminal on S8610U
Product Height
3.94 in, 100 mm
Product Width
5.44 in, 138 mm
Ambient Operating Temperature (Min)
-40 °F, -40 °C
Superseded By
HW-S8610U3009
