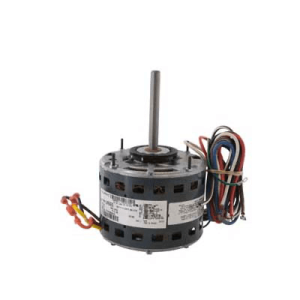

SOURCE 1 S1-FHM3583 York Blower Motor 1/4 HP 115V 3-Speed

Product Description

The SOURCE 1 S1-FHM3583 Blower Motor is designed to keep your HVAC system operating efficiently. This 1/4 horsepower motor runs at 115 volts and features a three-speed operation. It serves as a direct replacement for part number S1-FHM3583, ensuring an easy installation. Enjoy reliable airflow for effective heating and cooling thanks to its reversible rotation and consistent performance at 1075 RPM.

• 1/4 HP motor with three-speed settings
• Reversible rotation for flexible installation
• Permanently lubricated for longer service life

Product Highlights

This blower motor is constructed for durability and efficiency, providing optimal airflow for your heating and cooling needs. It is thermally protected and backed by a one-year warranty, ensuring peace of mind during operation.

Product Information

Standard Information

• Brand: ClimaTek
• Manufacturer: ClimaTek

Technical Specifications

• Horsepower: 1/4 HP
• Voltage: 115V
• RPM: 1075
• Speed: 3-Speed
• Reversible: Yes
• Hertz: 60
• Amps: 4.2
• Frame: 48Y
• Shaft Diameter: 1/2 inches
• Shaft Length: 4 inches
• Height: 4.5 inches
• Outer Diameter: 5.5 inches
• Thermally Protected: True
• Permanently Lubricated: True
• Insulation Class: B
• Motor Cooling: Continuous Air Over
• Capacitor Needed: 5MFD @ 370V
• Item Weight: 179 ounces
