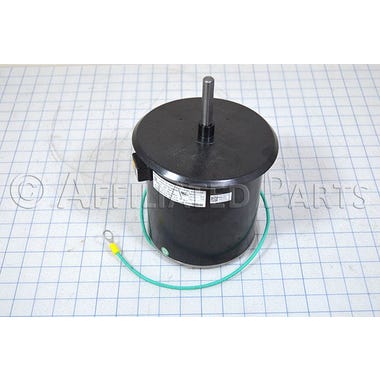

Source 1 S1-6008080 Condenser Motor 3/4 HP 460V CWLE

Product Description

The Source 1 S1-6008080 is a condenser fan motor designed for HVAC systems. This motor operates on 460 volts single-phase power and provides 3/4 horsepower. It runs at one speed with a rotation of clockwise lead end at 1,110 RPM.

• Constructed with a 48Y NEMA frame
• Features a 1/2 inch diameter shaft with a length of 3.5 inches
• Includes a rain shield for weather protection

Product Highlights

This condenser fan motor offers reliable performance for demanding applications, ensuring effective cooling and airflow. Its ball bearing construction and open enclosure design enhance durability and efficiency.

Product Information

Standard Information

• Brand: Source 1
• Description: Condenser Fan Motor

Technical Specifications

• HP: 3/4
• Voltage: 460V
• Phase: Single
• RPM: 1,110
• FLA: 1.6
• Hertz: 60
• Frame: 48Y
• Rotation: Clockwise Lead End
• Shaft Diameter: 1/2 inch
• Shaft Length: 3.5 inches
• Weight: 17.00 lb
• Dimensions: 11.00 inches x 7.50 inches x 7.50 inches
