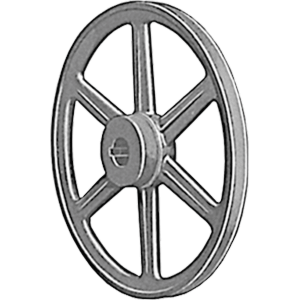

SOURCE 1 S1-02812364700 Fixed Sheave 1 Groove 1 Bore BK67

Product Description

The SOURCE 1 Fixed Sheave, with MPN S1-02812364700, is designed for reliable performance in HVAC applications. This sheave is made from cast iron and is compatible with various belt types including 4L, 5L, A, and B. It has a 1-inch bore diameter and an overall outside diameter of 6.45 inches.

• Constructed from durable cast iron for long-lasting use.
• Compatible with multiple belt types including 4L, 5L, A, and B.
• Includes a set screw for secure installation.

Product Highlights

This fixed sheave is a versatile choice for motor parts and accessories. The robust design ensures it can handle standard HVAC tasks without issues.

Product Information

Standard Information

• Manufacturer: Johnson Controls
• UPC: 688714141433

Technical Specifications

• Bore Type: Fixed
• Bore Diameter: 1 Inch
• Bore Length: 1.281 Inch
• Hub Diameter: 1.875 Inch
• Outside Diameter: 6.45 Inch
• Pitch Diameter: 5.7 Inch (A Belt), 6.1 Inch (B Belt)
• Number of Grooves: 1
• Width: 0.875 Inch
