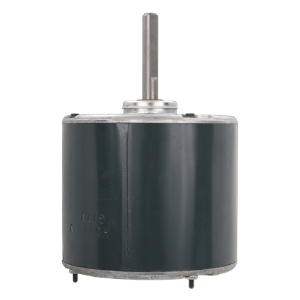

SOURCE 1 S1-02424110715 3/4 HP Condenser Fan Motor

Product Description

The SOURCE 1 S1-02424110715 is a condenser fan motor with a power rating of three-fourths horsepower. It operates on 208 or 230 volts with a single-phase electrical system. This motor features a single speed, achieving a rotation speed of 1050 RPM. The design includes a 48 NEMA frame size and a totally enclosed air over enclosure.

• Voltage: 208/230 volts, single phase
• Delivers 3/4 HP at 1050 RPM
• Requires clockwise rotation when viewed from the end opposite the shaft

Product Highlights

This motor is ideal for various HVAC applications where reliability and efficiency are necessary. The use of ball bearings ensures smooth operation, while the totally enclosed design provides protection against dust and debris.

Product Information

Standard Information

• Brand: SOURCE 1
• Weight: 20.5 lbs

Technical Specifications

• HP: 3/4
• NEMA Frame: 48
• OEM/OEM Mfg. #: A.O. Smith #F48M30A50
• Phase: Single
• RPM: 1050
• Rotation: Clockwise End Opposite Shaft
• Speeds: 1
• Volts: 208/230
