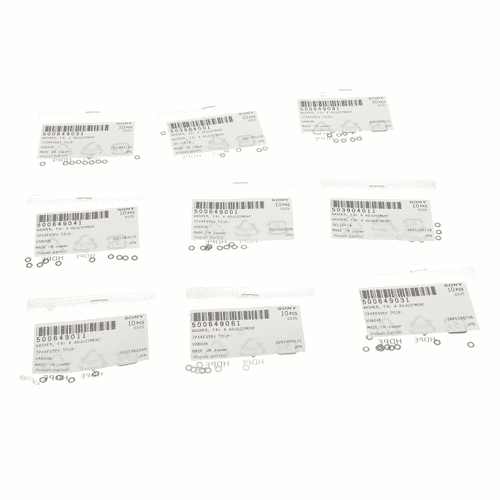

Sony 9-913-204-54 Shim Kit

Product Description

The SONY 9-913-204-54 is a shim kit designed as a precision spacer or alignment component used during assembly or service of compatible Sony equipment. Shim kits provide controlled spacing between mechanical parts to achieve proper fit, alignment, and load distribution. This kit is referenced under Sony part family 500516XXX and is sourced directly from Sony as an OEM replacement component. Installation requires careful fitment to ensure mechanical tolerances are maintained. Licensed service technicians and experienced electronics repair professionals are the typical installers of this part.

This shim kit is intended for use in service or repair scenarios where original spacing components have worn, deformed, or been lost during disassembly. The part is cross-referenced to Sony lens or optical assembly applications based on the associated model reference SEL1224GM, suggesting compatibility with Sony G Master lens service procedures. Use only in applications where the original Sony shim specification is required.

Key Features

• OEM Sony shim kit for precision mechanical alignment
• Referenced under Sony part family 500516XXX
• Associated with SEL1224GM lens assembly service
• Maintains factory mechanical tolerances during reassembly
• Direct Sony replacement part for accurate fitment

Compatibility

Associated with Sony model reference SEL1224GM based on supplier data. Consult Sony service documentation to confirm fitment for your specific unit before ordering.

Installation Notes

Installation of shim kits should be performed by a qualified Sony-authorized technician or experienced optical and mechanical repair professional. Power down and fully discharge the device before disassembly. Handle shims carefully to avoid bending or contaminating contact surfaces, as deformation will affect tolerancing. Refer to the applicable Sony service manual for correct shim placement sequence and assembly procedures.

Technical Specifications

• Part Family Reference: 500516XXX
• Associated Model Reference: SEL1224GM

Standard Information

• Brand: SONY
• Manufacturer Part Number: 9-913-204-54
