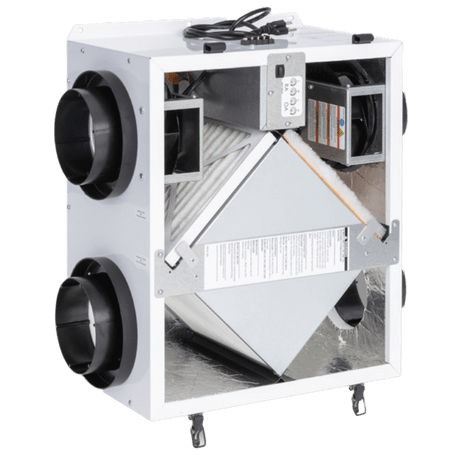

Soler & Palau TRE200 Energy Recovery Ventilator

Product Description

The Soler & Palau TRE200 is an energy recovery ventilator designed to enhance air quality in homes and light commercial buildings. This unit effectively removes stale air and replaces it with fresh air from outside. It features an EC motor for energy efficiency, allowing for balanced airflow suitable for different duct lengths. Designed for flexible installation, it can be mounted in any position, with a high-speed boost option for increased airflow.

• Efficient EC motor for lower energy consumption.
• Individual airstream balancing for customization.
• Versatile mounting options available.

Product Highlights

The TRE200 offers advanced air temperature efficiency and low sound levels, making it suitable for residential applications.

Product Information

Standard Information

• Type: ERV-Air Supply Fan
• Application: Residential

Technical Specifications

• Maximum Airflow: 233 CFM
• Minimum Airflow: 18 CFM
• External Static Pressure: 0.1 inches w.g.
• Power Consumption: 85 W
• Amperage: 1.22 Amps
• Input Voltage: 110-120 V
• Duct Diameter: 6 inches
• Dimensions: Height 13.38 inches, Width 22.5 inches, Depth 25.5 inches
