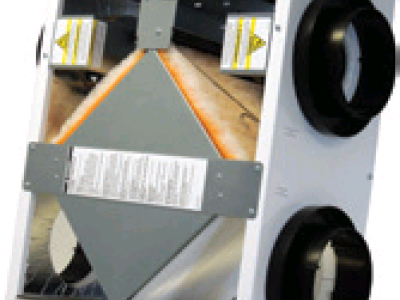

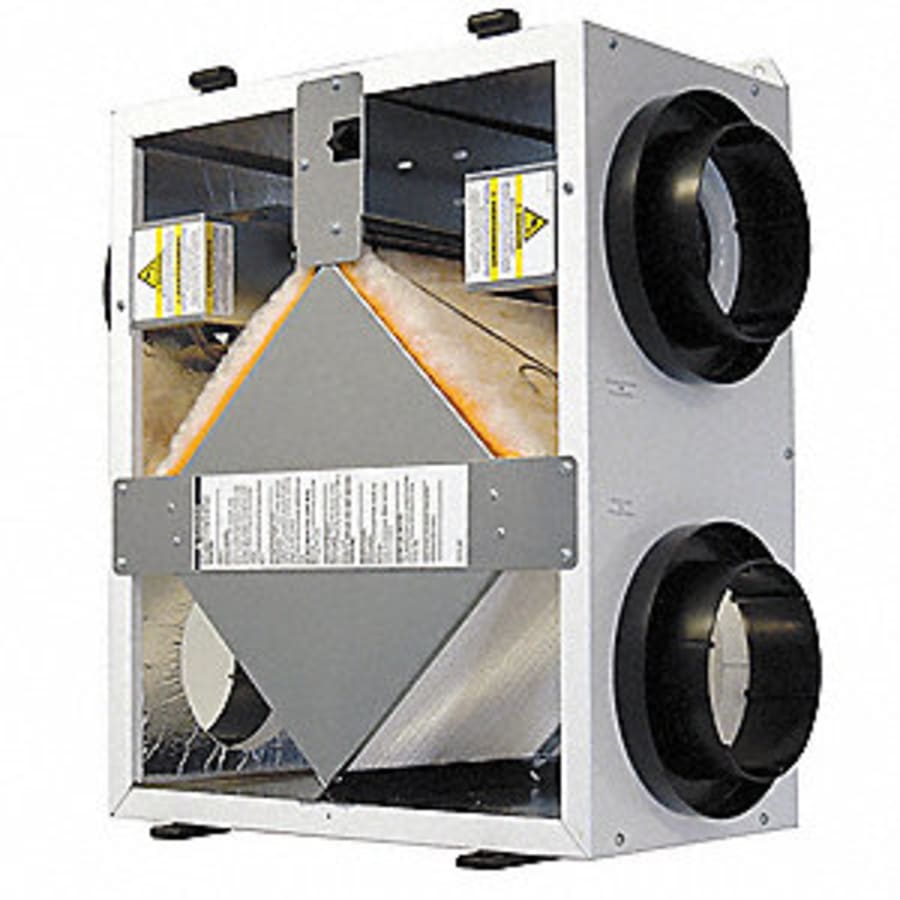

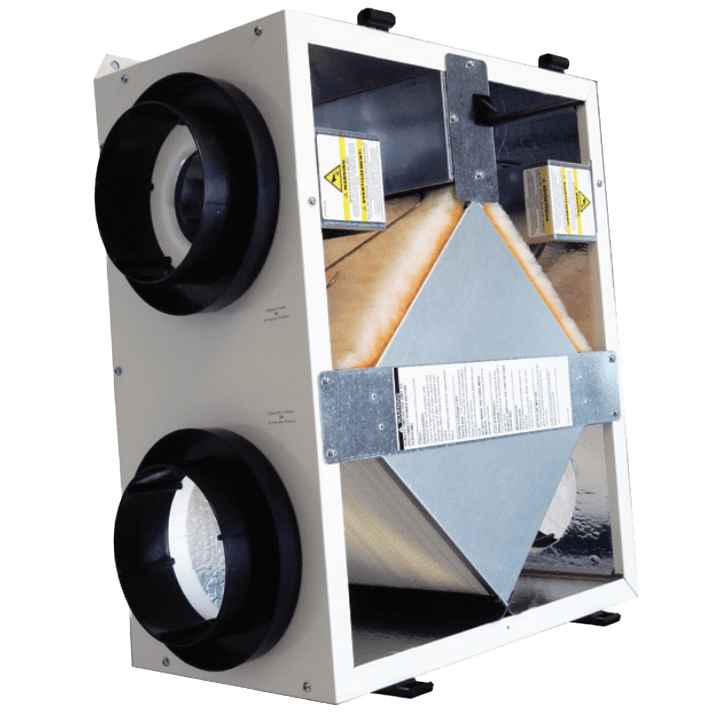

Soler & Palau TR90 Total Recovery for All Climates

Product Description

The SOLER & PALAU TR90 total recovery system improves indoor air quality by exhausting stale air and bringing in fresh outdoor air. The air streams pass through an air-to-air energy exchange core, separated by layers of plates, preventing contamination. It transfers heat and humidity, creating a comfortable environment and eliminating condensation.

• Features MERV-8 filters for clean air filtration.
• Consumes less than 1-watt of standby power.
• Includes a transformer/relay package for simple on/off control.

Product Highlights

This energy recovery ventilator provides efficient ventilation with high energy recovery and easy installation, enhancing indoor comfort.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: TR90

Technical Specifications

• Airflow CFM: 36, 53, 68, 81, 93, 108
• ESP in H2O: 0.60, 0.50, 0.40, 0.30, 0.20, 0.10
• Temp EFF%: 78, 74, 70, 67, 64, 61
• Total EFF% Winter: 75, 69, 65, 61, 58, 55
• Total EFF% Summer: 65, 58, 53, 49, 45, 42
• Minimum Cubic Feet per Minute (CFM) (CFM): 40.0
• Mounting Type: Suspended, Wall
• Port Location: Side
• Type: ERV-Air Supply Fan
• Application: Residential
• Certifications: cULus, HVI, UL
• Controls: Electronic
• Maximum Cubic Feet per Minute (CFM) (CFM): 110.0
• Maximum Amperage (Amps): 0.35
• Power Supply: Plug
• Voltage (V): 110-120
• Watts (W): 46
• Duct Diameter (in.): 6.0
• Humidity Sensing: No
• Material: Steel
• Horsepower: 0.1
• ADA: No
• Kitchen Approved: No
