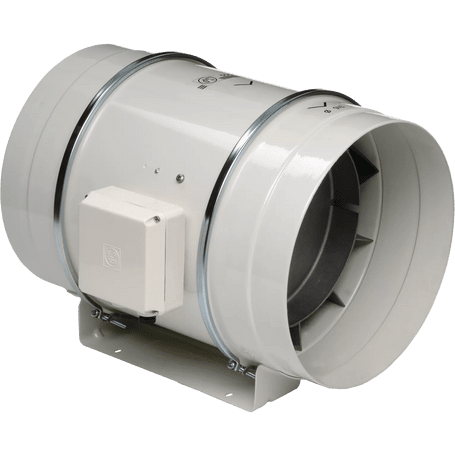

SOLER & PALAU TD-355 Mixed Flow Inline Duct Fan 14-Inch

Product Description

The SOLER & PALAU TD-355 is a fourteen-inch mixed flow inline duct fan ideal for ventilation in small to medium-sized setups. This fan has a mixed flow impeller and a removable body that simplifies servicing. It fits well in residential, commercial, and industrial systems where space and airflow efficiency are priorities.

• Mixed flow design enhances airflow.
• Removable body allows easy maintenance.
• Adaptable for various ventilation needs.

Product Highlights

Efficient and versatile, this duct fan is designed to integrate seamlessly into existing HVAC systems, providing reliable performance.

Product Information

Standard Information

• Brand: SOLER & PALAU
• MPN: TD-355

Technical Specifications

• Type: Mixed Flow Inline Duct Fan
• Duct Diameter: 14 inches
• Maximum Airflow: 2089 CFM
• Speed: Variable
• Voltage: 110-120 V
• Frequency: 60 Hz
• Amperage: 3.9 Amps
• Power Consumption: 522 W
• Maximum Operating Temperature: 104 degrees F
• Minimum Operating Temperature: -4 degrees F
• Application: Commercial, Industrial, Residential
• Construction: Metal
• Mounting: Inline Duct
• Certifications: HVI, UL, cUL, cULus, ENERGY STAR
• Product Dimensions: 18 x 18 x 15 inches
• Product Weight: 68 lbs
• Nominal RPM: 1536
• Maximum Static Pressure: 1.0
• Phase: 1 Phase
• Horsepower: 0.7
• Thermal Overload Protection: Yes
• Color: White
• Drive Type: Direct
• Warranty: 5 Year
