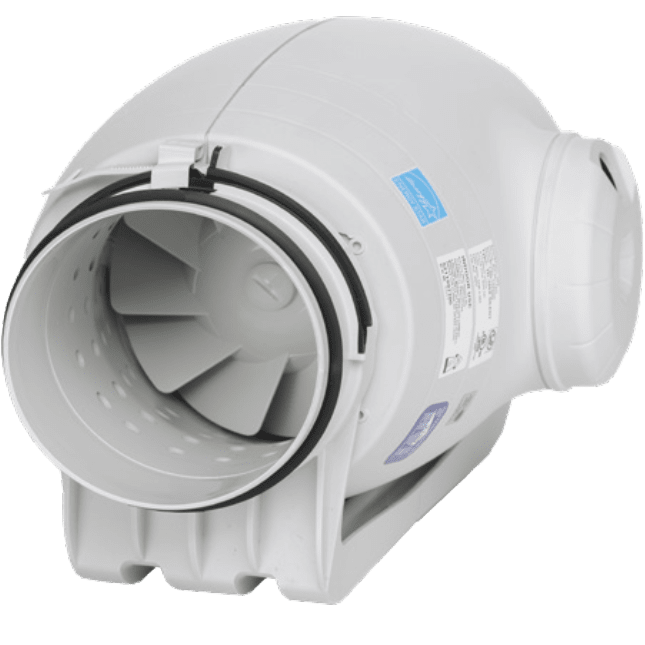

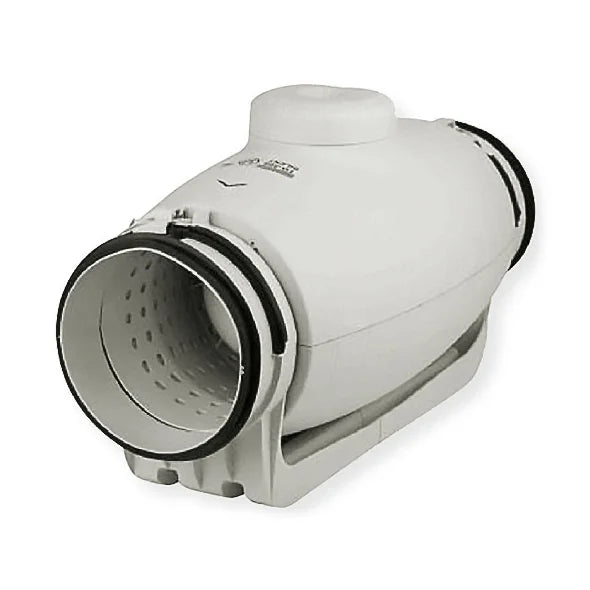

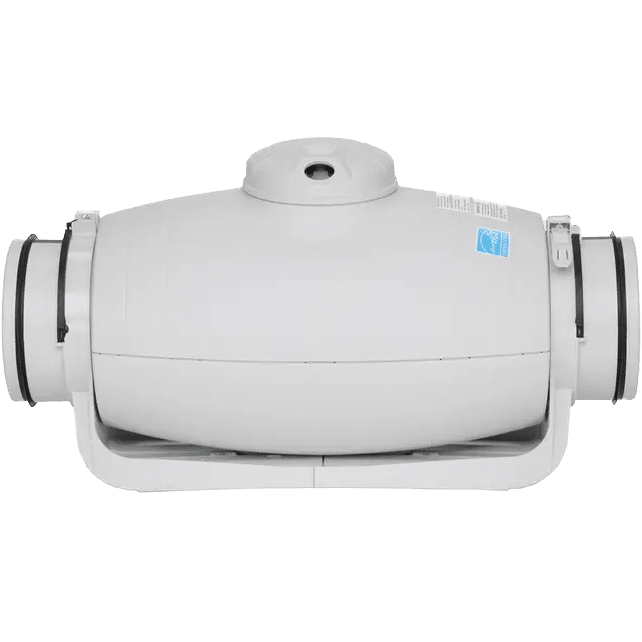

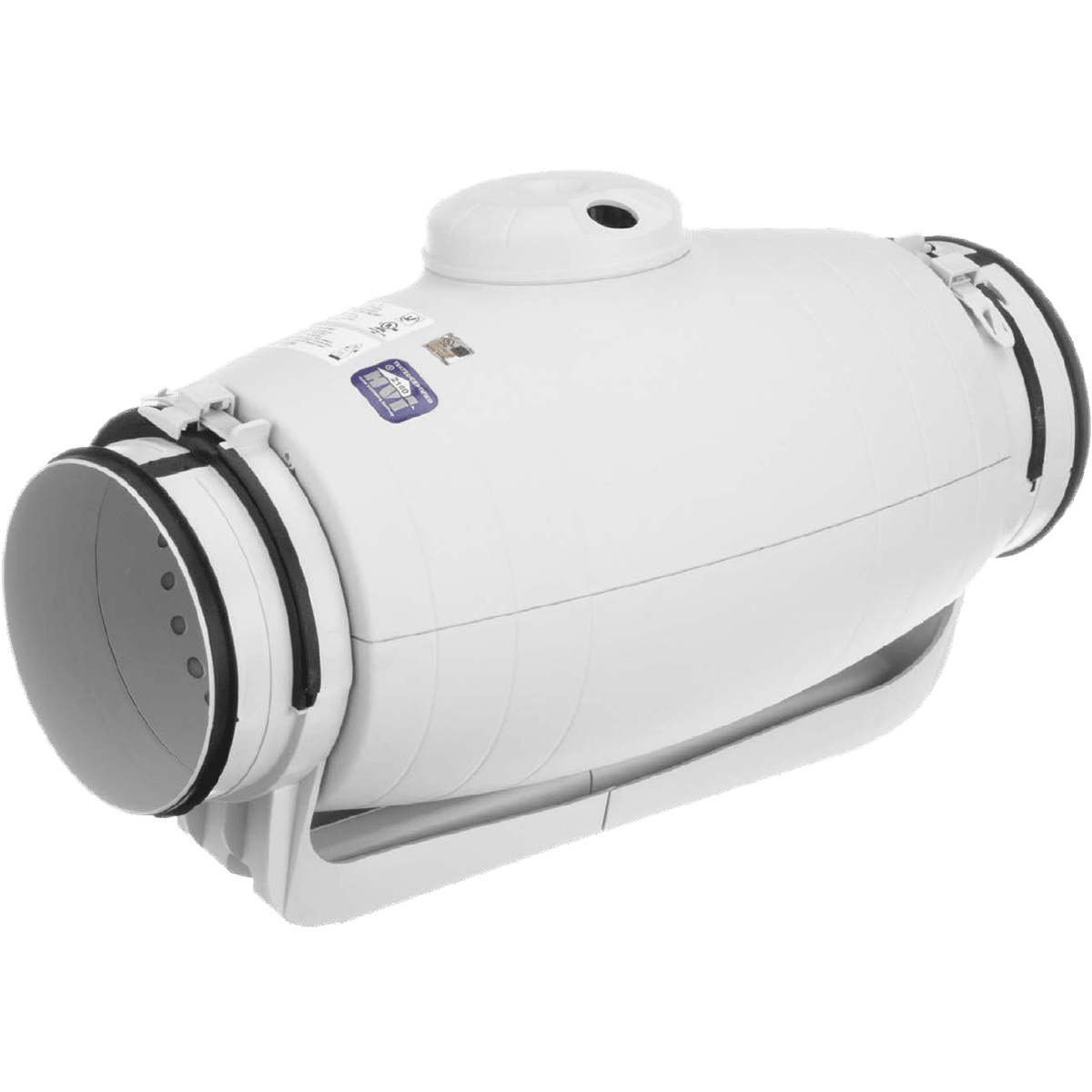

Soler & Palau TD-125XS Inline Mixed Flow Duct Fan 120V

Product Description

The SOLER & PALAU TD-125XS Inline Mixed Flow Duct Fan provides the hardware needed for ducted ventilation installation. This 5-inch duct fan maximizes airflow in small spaces with sound-absorbent insulation for quiet operation. It features an integral mounting bracket for easy installation and maintenance. Suitable for households, offices, and restaurants.

• Maximizes airflow in small and compact spaces.
• Sound waves are absorbed by a layer of sound-absorbent insulation for quiet operation.
• Features an integral mounting bracket for easy installation.

Product Highlights

The TD-125XS is designed for efficient air ventilation in small to mid-range spaces, offering quiet operation and easy installation.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: TD-125XS
• Country of Origin: USA

Technical Specifications

• Manufacturer: Soler & Palau
• Part Number: TD-125XS
• Item model number: TD-125XS
• Material: Polypropylene
• Power Source: Corded Electric
• Voltage: 120 Volts
• Item Package Quantity: 1
• Usage: Inside
• Included Components: 1 TD-125XS, Removeable body
• Batteries Required?: No
• Number of Speeds: Variable
• Type: Low Noise Inline Duct Fan
• Application: Ducting, Residential, Commercial/Industrial
• Certifications: UL, cUL, HVI, cULus
• Controls: Electronic
• Maximum Air Temperature (degrees F): 104
• Maximum Cubic Feet per Minute (CFM) (CFM): 203.0
• Maximum Amperage (Amps): 0.3
• Power Supply: Hardwired
• Watts (W): 36

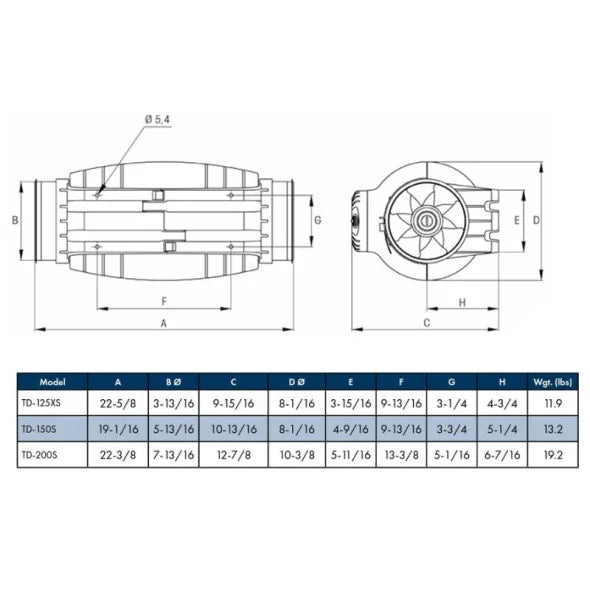

• Depth (in.): 22.63
• Duct Diameter (in.): 5.0
• Height (in.): 9.94
• Width (in.): 8.17
• Additional Features: Energy Star, Thermal Cutoff Protection
• Nom. RPM: 2500
• Voltage / Frequency: 120V / 60Hz
• Max. SP: 0.6"
• Current: 0.32A
• RPM: 2294
• Blade Diameter: 4"
• Blade Material: Plastic
• Drive Type: Direct
• Hertz: 60
• Horsepower: 0.05
• Phase: 1 Phase
• Speed: Variable Speed
