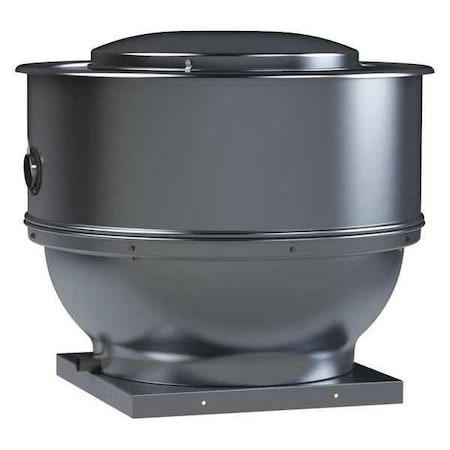

Soler & Palau STXD08HM1AS Upblast Centrifugal Fan 1/25HP

Product Description

The SOLER & PALAU STXD08HM1AS upblast direct drive centrifugal exhauster is UL705 Listed for general applications. It features heavy-duty construction and is rated for continuous use. The fan wheel is aluminum with a backward-inclined curved centrifugal design, dynamically balanced for smooth operation. Best suited for removal of dirty, contaminated, and/or high-temperature air.

• Attractive spun aluminum exterior
• Direct drive units have low sound levels and quiet operation
• Curved non-overloading backward inclined wheel for efficiency at higher static pressures

Product Highlights

The STXD08HM1AS exhauster can be used in ducted or non-ducted installations, vertically through the roof or horizontally through a sidewall. Direct drive units are quieter and easier to maintain.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXD08HM1AS
• Country of Origin: United States

Technical Specifications

• Product Type: Commercial Exhauster
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Type of Drive: Direct Drive
• Wheel Size (in.): 8
• Horsepower (hp): 1/25
• Max. BHP: 0.04
• RPMs: 1150
• Max. Static Pressure WG (in.): 1/4
• Sones Level: 6.0 @ 1/8 SP
• CFM @ Zero Static Pressure: 612

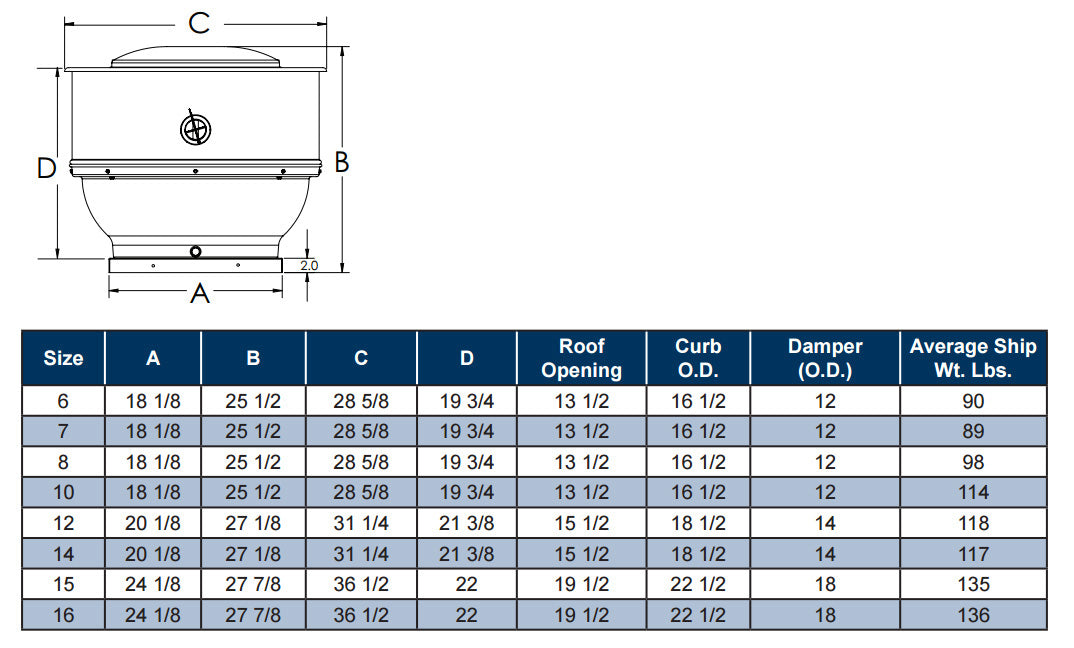

• Roof Opening (in.): 13.5
• Width (in.): 28.625
• Depth (in.): 28.625
• Height (in.): 25.5
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
• Voltage: 110-120V
• Country of Origin: United States
