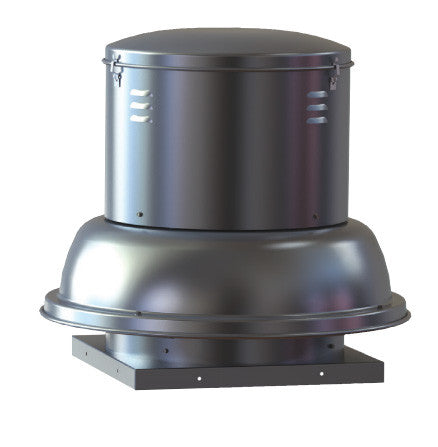

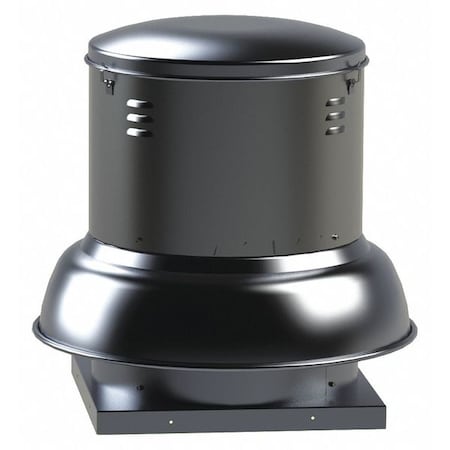

Soler & Palau SDB08ML1S Downblast Exhaust Fan 1/4HP 8 inches

Product Description

The SOLER & PALAU SDB08ML1S downblast belt drive centrifugal roof exhauster is designed to exhaust air in high static pressure applications. Belt drive results in lower operating RPM and sound levels. The non-overloading backward inclined wheel makes this unit suitable for ducted or non-ducted applications. Its roof mounting permits location near the area to be ventilated.

• Temperature rating up to 170 degrees F
• Spun aluminum exterior
• Belt drives permit easy performance adjustments when needed

Product Highlights

This downblast exhaust fan is ideal for commercial, industrial, and institutional environments. It features a belt drive for quiet operation and easy performance adjustments.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB08ML1S
• Country of Origin: United States

Technical Specifications

• Item #: SDB08ML1S
• Blade Diameter: 8"
• Blade Material: Aluminum
• CFM: 835
• Country of Origin: USA
• Drive Type: Belt
• Harmonized System Code: 841459
• Hertz: 60
• Horsepower: 0.25
• Made in the USA: Yes
• Phase: 1 Phase
• Product Weight: 89 lbs
• RPM: 835
• Speed: 1 Speed
• Voltage: 110-120V
• Product Type: Commercial Exhauster
• Installation: Roof
• Exhaust Type: Downblast
• Wheel Size (in.): 8
• Max. BHP: 0.13
• RPMs: 1550
• Max. Static Pressure WG (in.): 5/8
• Sones Level: 9.1 @ 1/4 SP
• CFM @ Zero Static Pressure: 835
• Roof Opening (in.): 13.5
• Width (in.): 25
• Depth (in.): 25
• Height (in.): 30
• Net Weight (lbs.): 90
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
• ItemPackageQuantity: 0
• Restricted Sale Item Code: NULL
• NumberOfItems: 1
• UPC: 0817418015188
