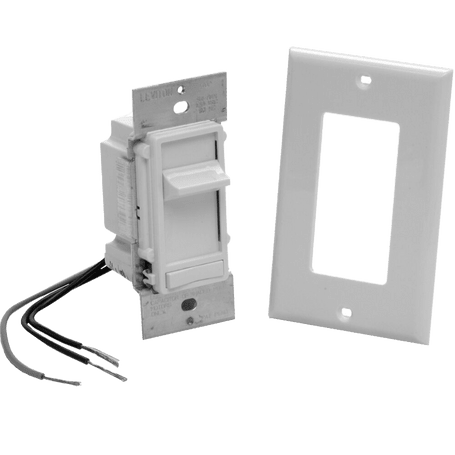

SOLER & PALAU SCS5 Slide Type 5 Amp Speed Control

Product Description

The SOLER & PALAU SCS5 is a slide-type speed control for ventilation and in-line duct fans. It features an on/off switch that keeps speed settings intact between uses. An adjustable minimum speed potentiometer prevents motor overload. It installs in standard wallboxes and supports multi-gang setups.

• Integrated on/off switch saves speed settings.
• Adjustable minimum speed potentiometer prevents motor overload.
• Designed for standard wallbox and multi-gang installation.

Product Highlights

The SCS5 provides reliability for HVAC systems and fans while enhancing performance and safety.

Product Information

Standard Information

• Brand: S&P
• Country of Origin: USA

Technical Specifications

• MPN: SCS5
• Type: Fan Control
• Switch Type: Single-Pole electro-mechanical
• Voltage: 120 VAC
• Frequency: 60 Hz
• Phase: Single
• Wattage: 600
• Operating Temperature: 32 to 131 degrees F
• Material: Synthetic
• Depth: 1.53 inches
• Height: 4.13 inches
• Width: 1.73 inches
• Product Height: 4 1/8 inches
• Product Width: 1 35/48 inches
• Product Length: 1 25/48 inches
• Product Weight: 1 pound
• Certifications: UL
• RFI Noise Suppression: Prevents signal interference
• Warranty: 5 Years
