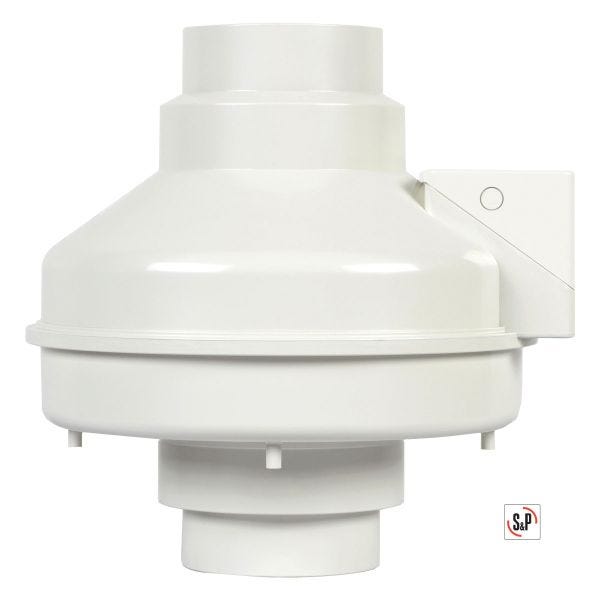

Soler & Palau PRF-100 4-Inch Radon Mitigation Fan

Product Description

The Soler & Palau PRF-100 is a 4-inch in-line fan designed specifically for radon mitigation applications. This fan utilizes a backward inclined centrifugal blower/motor, capable of handling up to one inch of static pressure. The duct connections are made to fit standard PVC couplings easily, allowing for quick installation. The fan features a completely sealed plastic housing, which includes a large watertight electrical box for easy wiring access. It can be mounted on duct pipe or fixed with a metal mounting bracket.

• Duct connections are sized for standard PVC couplings.
• High-quality, fully sealed plastic housing for durability.
• Large, accessible watertight electrical box included.

Product Highlights

This fan is suitable for various radon mitigation setups and environments, providing reliable performance.

Product Information

Standard Information

• Brand: Soler & Palau
• Series: PRF

Technical Specifications

• Duct Diameter: 4
• Inlet Size: 4 inches
• Maximum Airflow (CFM): 169
• Nominal RPM: 3080
• Input Voltage: 120V
• Input Frequency: 60Hz
• Power Consumption: 92W
• Current: 0.77A
• Maximum Static Pressure: 1
• Maximum Air Temperature: 140°F
• Weight: 6.6 lbs
• Mounting Type: In-line
• Certifications: HVI Certified, cETLus certified
