Soler & Palau MD5 Motorized Damper

Product Description

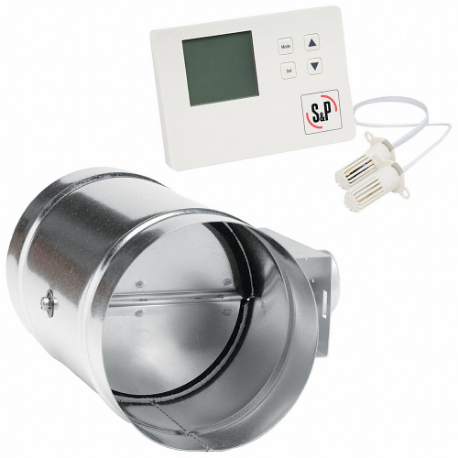

The Soler & Palau MD5 motorized damper is essential for effective air control in ventilation systems. Designed with a galvanized steel frame and blade, this product ensures durability and reliability. It can be mounted both horizontally and vertically, making it versatile for different setups. The damper operates on a twenty-four volt DC power supply and includes Envirosense ventilation control, aligning with ASHRAE 62.2 and IRC code standards.

• Galvanized steel construction for strength.
• Flexible installation in horizontal or vertical positions.
• Compatible with clean air applications.

Product Highlights

The MD5 is designed to optimize airflow in various ventilation scenarios, featuring a clean design suitable for multiple applications.

Product Information

Standard Information

• Product Type: Control Damper
• Country of Origin: CN

Technical Specifications

• Air Flow Direction: Horizontal/Vertical
• Blade Material: Galvanized Steel
• Blade Seal Material: Rubber
• Overall Diameter: 5 inches
• Overall Height: 9 7/8 inches
• Overall Length: 9 3/4 inches
• Overall Width: 5 inches
• Maximum Temperature Rating: 104°F
• Input Voltage: 24V DC
• Weight: 4.96 pounds
• Noise Level: ≤ 50 dB
• Standards: ASHRAE 62.2, IRC
