Soler & Palau CWD10PH1AS Direct Drive Centrifugal Sidewall Exhauster 1/3 Horse Power

Product Description

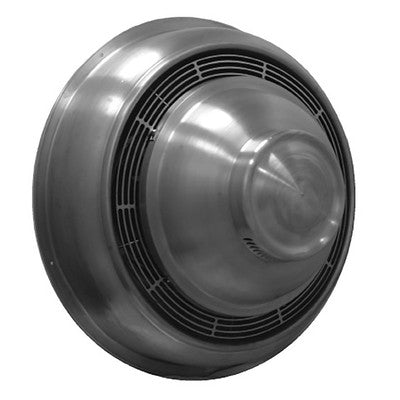

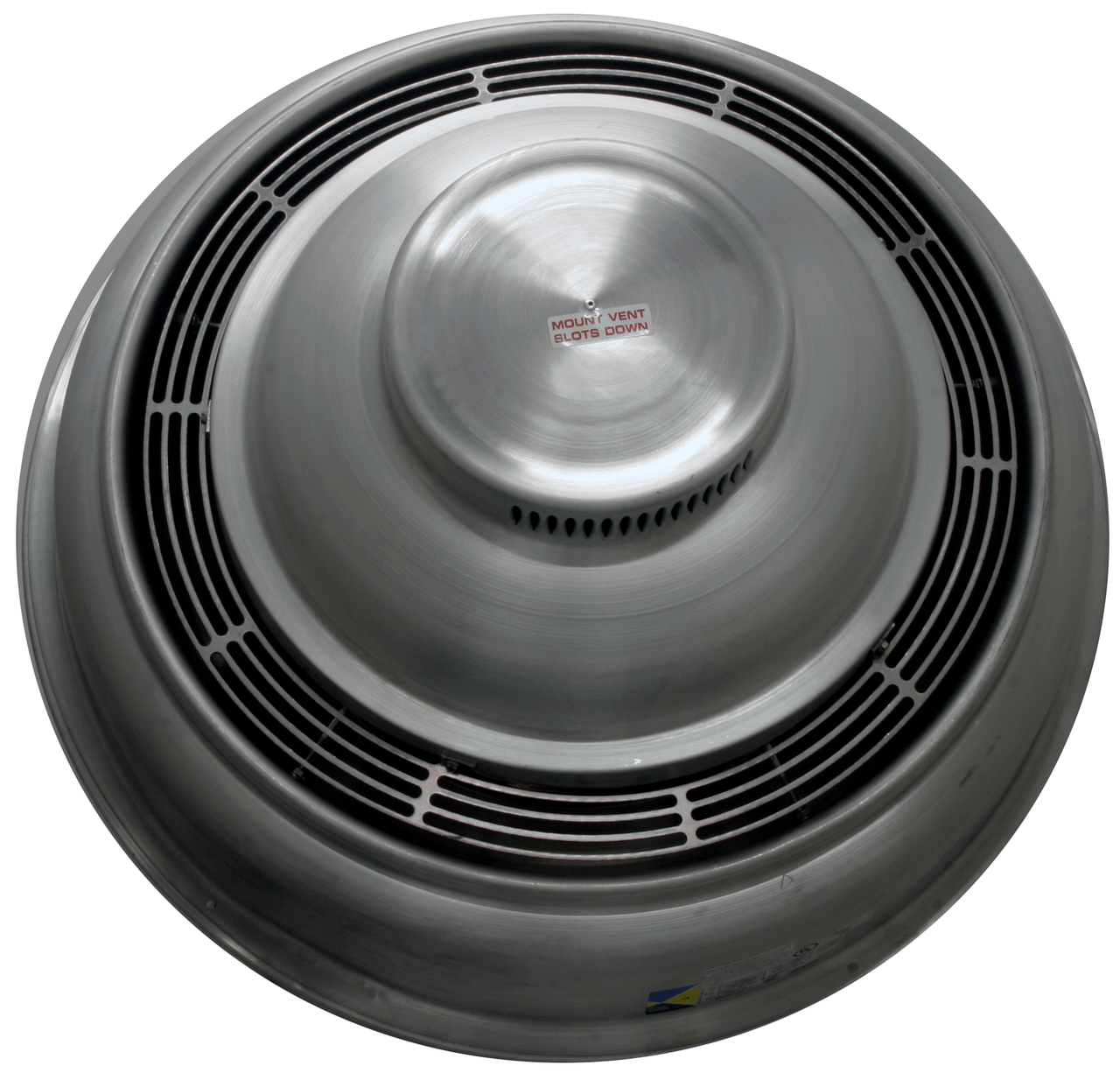

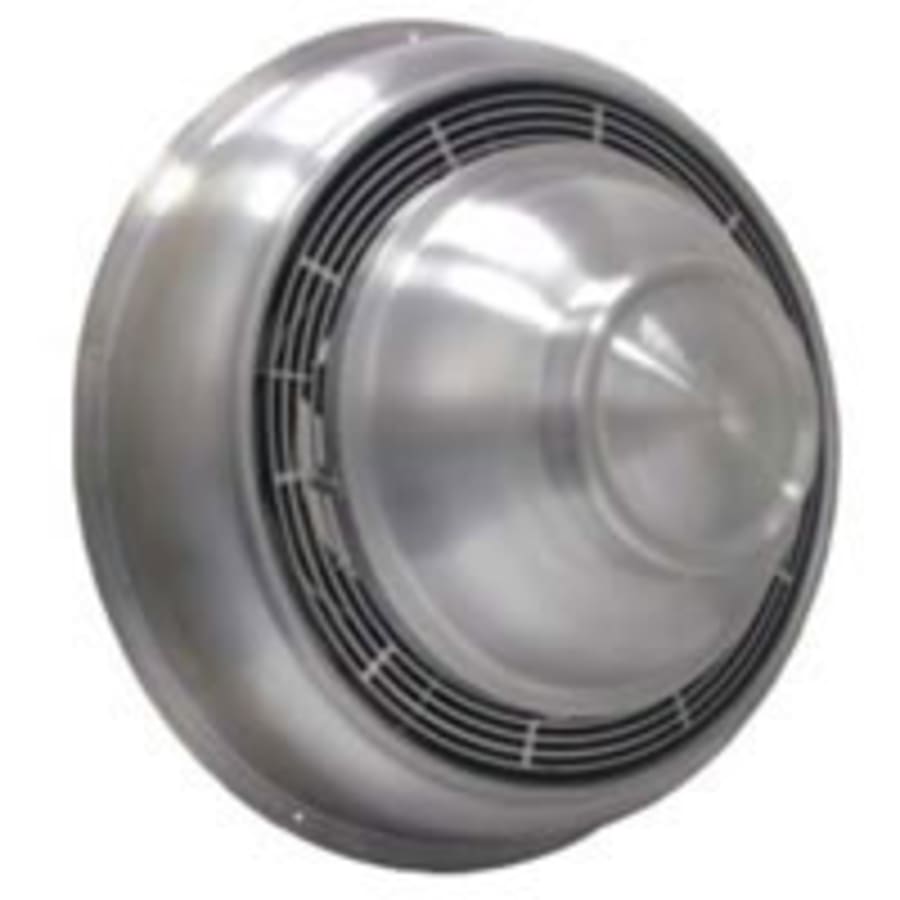

The Soler & Palau CWD10PH1AS is a direct drive centrifugal sidewall exhauster. Features an attractive spun aluminum exterior and direct drive units for low sound levels and quiet operation. The non-overloading backward incline wheel ensures efficiency at higher static pressures. AMCA air and sound licensed and UL 705 Listed.

• Attractive spun aluminum exterior.
• Direct drive units have low sound levels and quiet operation.
• Non-overloading backward incline wheel for efficiency at a higher static pressures.

Product Highlights

The Soler & Palau CWD10PH1AS is ideal for exhausting air in industrial, commercial, and institutional buildings. Its design ensures quiet operation and resistance to corrosion.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: CWD10PH1AS
• Country of Origin: USA

Technical Specifications

• Brand: Soler & Palau
• MPN: CWD10PH1AS
• Voltage: 115/1/60
• CFM: 1453
• Height: 31 in.
• Length: 30 in.
• Width: 30 in.
• Configuration: Sidewall Exhaust Fan
• Humidity Sensing: No
• Material: Aluminum
• Mount Type: Wall
• Drive Type: Direct Drive
• Horsepower: 0.33
• Sones: 15.4
• Speeds: 1
• ADA: No
• Approved for Commercial Use: Yes
• Certifications: UL, AMCA Air and Sound Licensed, UL 705 Listed
• Kitchen Approved: No
• Product Type: Commercial Exhauster
• Installation: Sidewall
• Exhaust Type: Side
• Wheel Size (in.): 10
• Max. BHP: 0.33
• RPMs: 1575
• Max. Static Pressure WG (in.): 1
• Sones Level: 15.4 @ 1/8 SP
• CFM @ Zero Static Pressure: 1453
• Depth (in.): 16.5
• Hertz: 60
• Motor Type: ODP
• Phase: 1 Phase
• RPM: 1575
• Blade Diameter: 10.0"
• Made in the USA: Yes
