Soler Palau 92612221 Roof Mounting Curb Ksf Size 10

Product Description

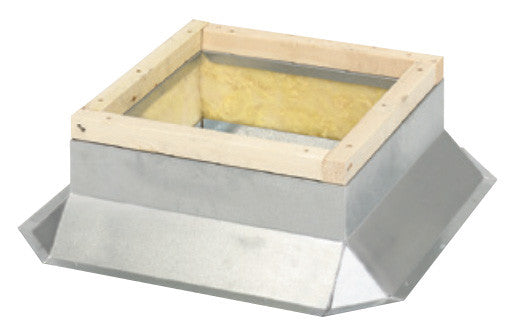

The SOLER PALAU 92612221 is a roof mounting curb designed for use with KSF Filtered Roof Supply Fans, Size 10. Built from heavy gauge galvanized steel with welded construction, this curb provides a stable, weathertight base for rooftop exhaust and supply fan installations. The curb stands 12 inches high and features a 1.5 inch wood nailer, integrated insulation, a damper shelf, and a mitered 3 inch cant. The outside dimension of the square curb measures 26.5 inches. Licensed HVAC technicians and sheet metal contractors typically handle this installation as part of a rooftop mechanical unit project.

This mounting curb is intended for rooftop installations where a KSF Filtered Roof Supply Fan, Size 10, requires a code-compliant base that elevates the fan unit above the roof deck. The curb accommodates insulation and damper components, making it suitable for both new construction and retrofit applications in commercial and light industrial settings. The included wood nailer simplifies attachment to the roof structure during rough-in.

Key Features

• 12 inch curb height provides proper elevation above roof deck
• Heavy gauge galvanized steel with welded construction for durability and weather resistance
• 1.5 inch wood nailer included for simplified fastening to roof framing
• Integrated insulation and damper shelf included
• Mitered 3 inch cant for positive drainage and weathertight fit
• Square outside dimension of 26.5 inches sized for KSF Size 10 fan units

Compatibility

Designed for use with SOLER PALAU KSF Filtered Roof Supply Fans, Size 10.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified sheet metal contractor in accordance with local mechanical codes and the manufacturer instructions. Power to the associated fan unit must be disconnected and locked out before any curb or fan work begins. The wood nailer should be fastened securely to the roof framing, and all curb-to-roof penetrations must be properly flashed and sealed to prevent water intrusion. Confirm roof load capacity and curb orientation before final installation.

Technical Specifications

• Curb Height: 12 inches
• Outside Dimension: 26.5 inches square
• Construction: Heavy gauge galvanized steel, welded
• Wood Nailer: 1.5 inches
• Cant: Mitered 3 inches
• Includes: Insulation, damper shelf, wood nailer

Standard Information

• Brand: SOLER PALAU
• Manufacturer Part Number: 92612221
