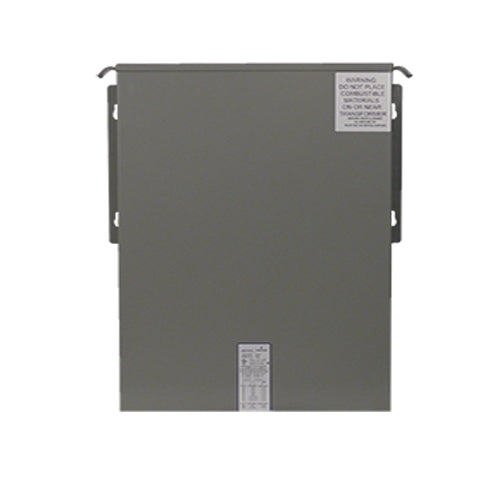

SolaHD HS5F3AS 3KVA TFMR

Product Description

The SolaHD HS5F3AS is a three-phase transformer designed for low-voltage applications. This transformer has a KVA rating of 3, making it suitable for various electrical projects. The transformer operates with a primary voltage of two hundred forty to four hundred eighty volts AC at sixty hertz and provides a secondary output voltage of one hundred twenty to two hundred forty volts AC.

• Low Voltage, Single Phase Transformer
• Rated for harsh industrial environments
• UL Listed for indoor and outdoor service

Product Highlights

This SolaHD transformer features a NEMA Type 3R encapsulated enclosure, making it suitable for both indoor and outdoor use. It is designed for durability and reliability in demanding industrial settings.

Product Information

Standard Information

• Brand: SolaHD
• Manufacturer: Sola Hevi-Duty

Technical Specifications

• KVA Rating: 3
• Input Voltage: 240 x 480 Volt Primary VAC
• Output Voltage: 120/240 Volt Secondary
• Frequency Rating: 60 Hz
• Number Of Phases: 1
• Weight: 59.5 lbs
• Width: 14 inches
• Height: 12 inches
• Length: 9 inches
• Temperature Rating: 115 Degrees C Temperature Rise Under Full Load
• Maximum Input Current: 15.6/31.3 A
• Maximum Output Current: 31.3/62.5 A
