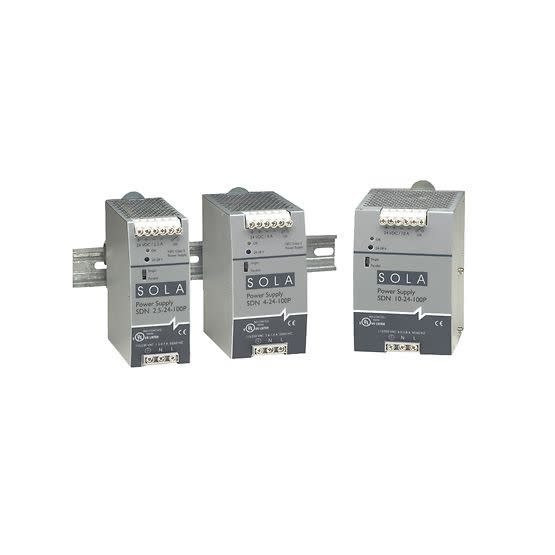

SOLA SDN5-24-100P DIN Rail Power Supply

Product Description

The SOLA SDN5-24-100P is a reliable single-phase DIN rail power supply. It accepts an auto-select input of 115/230 Vac, 50/60 Hz, or 90-375 Vdc. It adjusts output voltage within the twenty-four Vdc range and delivers up to one hundred twenty watts.

• Overvoltage, overtemperature, and short circuit protection
• Rugged metal case with user-friendly front panel
• Operational in temperatures from negative ten to sixty degrees Celsius

Product Highlights

This unit ensures safe operation with features compliant to cULus, cRUus, CE, and RoHS standards.

Product Information

Standard Information

• Brand: SOLA
• MPN: SDN5-24-100P

Technical Specifications

• Hertz: 47-63 Hz
• Input Voltage Range: 115-230 Vac, 90-375 Vdc
• Operating Temperature: -10°C to +60°C
• Output Power: 60-240 W
• Output Voltage Range: 12, 24, 48 Vdc
• Overload Capability: < 16-60 Vdc
• Status Indicator: Visual: Green LED, DC OK
• Number of Phases: Single
• Mounting: DIN TS35/7.5 or TS35/15
