Sola Hevi-Duty ES5H50S 50KVA 240X480-120/240 1

Product Description

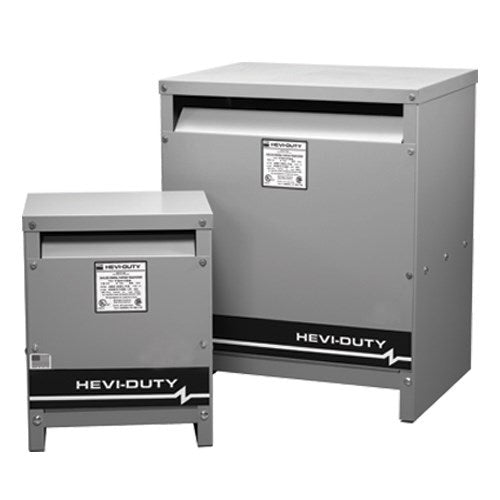

The Sola Hevi-Duty ES5H50S is a ventilated distribution transformer with a power rating of 50KVA. This transformer operates at primary voltages of 240 and 480 volts AC and is designed to step down to secondary voltages of 120 to 240 volts AC.

• Primary Amperage: 208/104A
• Secondary Amperage: 416/208A
• Standard: UL Listed

Product Highlights

This transformer features wall mounting brackets, copper winding, and a 220 degree Celsius insulation system. It is suitable for any situation where the available voltage must be adjusted for specific applications.

Product Information

Standard Information

• Manufacturer: Sola Hevi-Duty
• Family Group: Transformers

Technical Specifications

• KVA Rating: 50KVA
• Primary Voltage: 240 x 480 VAC
• Secondary Voltage: 120/240 VAC
• Weight: 439 lbs
• Width: 18 in
• Height: 31 in
• Length: 18 in
• Winding: Copper
• Number of Phases: 1
• Enclosure: NEMA 3R with optional weather shield
• Insulation Class: 220 degree Celsius
