Snaprack 242-02150 Universal Wire Clamp

Product Description

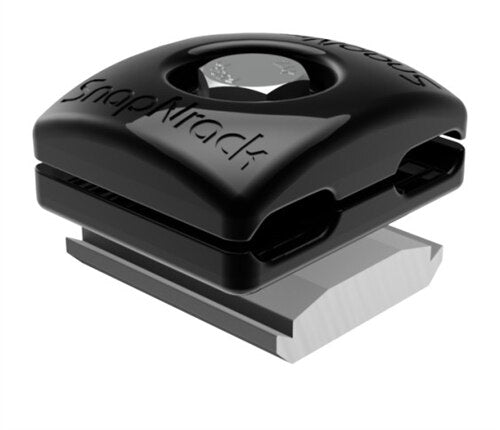

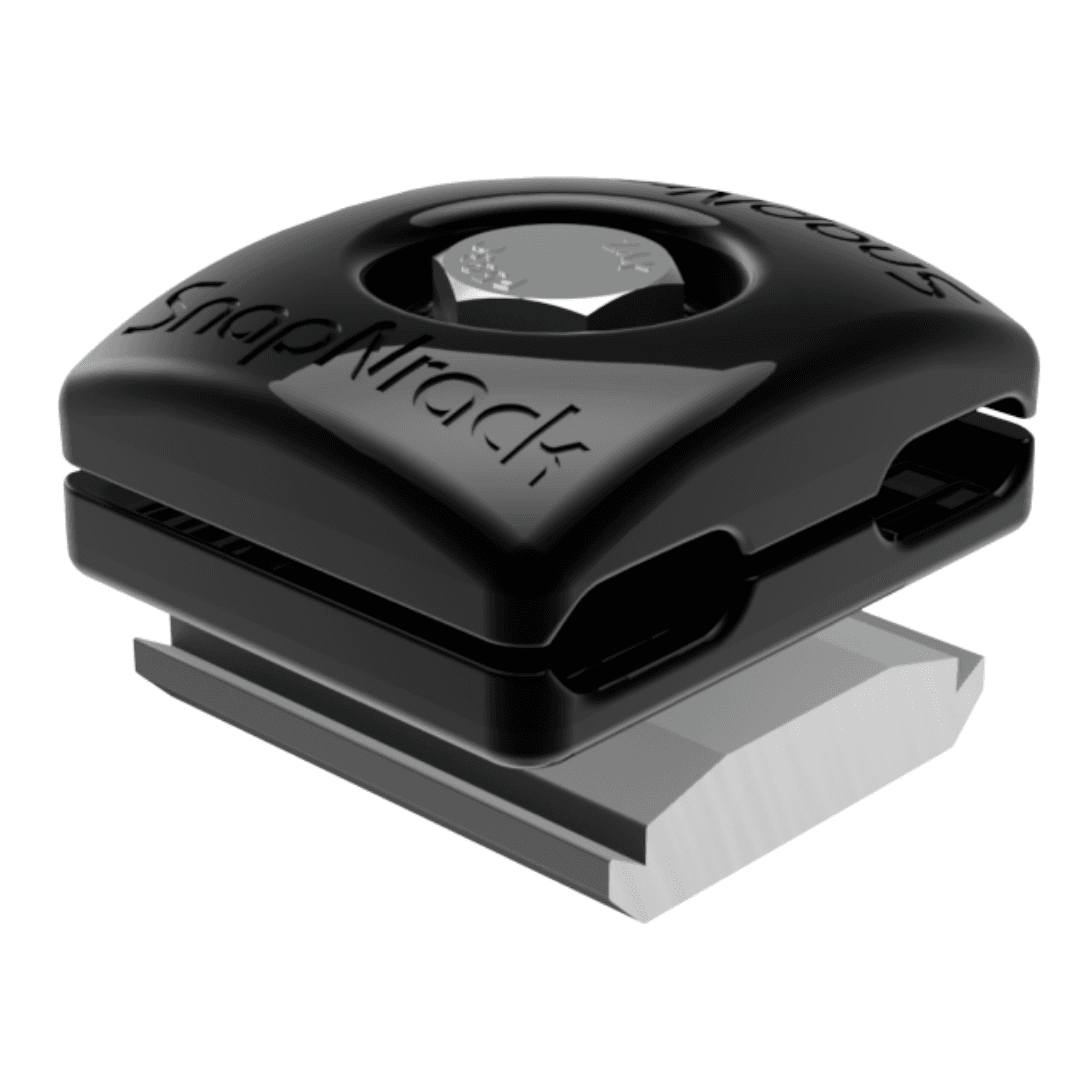

The SnapRack 242-02150 Universal Wire Clamp secures PV conductors and AC trunk cables directly to Ultra Rail / Series 200 channels using a channel nut and a single bolt. It’s a compact, UL 2703–listed clamp designed for quick, code-ready wire management on rooftops and ground mounts. It holds Enphase IQ cables and up to four PV wires.

• Fast, Tool-Light Install: Drops into the rail channel and tightens with a 1/2″ socket; no loose T-bolts to juggle.
• Versatile Capacity: Holds Enphase IQ cables and up to four PV wires; commonly used to secure two AC trunk cables in the rail.
• Rooftop-Ready Materials: UV-rated plastic clamp halves with stainless/aluminum hardware stand up to heat and weather.

Product Highlights

The Universal Wire Clamp provides a high-quality wire and conduit management solution for the life of the system, with a faster and easier installation. It easily attaches to standard rail using a channel nut and single bolt with a 1/2” socket.

Product Information

Standard Information

• Brand: SnapRack
• Manufacturer Part Number: 242-02150

Technical Specifications

• Part Number: 242-02150
• System Compatibility: Ultra Rail; Series 200 Ground Mount
• Clamp Capacity: Up to 4 PV wires; supports Enphase IQ / 2× AC trunk cables
• Cable O.D. Range: 0.21–0.45 in (each conductor)
• Included Hardware: 5/16-18 flanged hex bolt & flat washer; 5/16-18 channel nut with spring
• Materials: UV-rated plastic (top/bottom), 6000-series aluminum, stainless steel
• Load Rating: 20 lb (89 N)
• Torque Spec: 30 in-lb (3.4 N·m)
• Temperature Rating: 75 °C
• Certifications: UL 2703 (E359313); conforms to UL 1565
• Notes: For positioning/retention of conductors inside rail channels
• Brand: Snapnrack
