Snappy p13-427 90 Degree Register Boot 4x12 7 Inch

Product Description

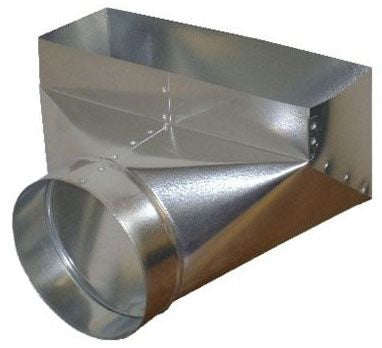

The SNAPPY p13-427 is a galvanized steel 90-degree register boot designed for residential and light commercial forced-air duct systems. The fitting transitions a 7-inch round duct collar to a 4 x 12 inch rectangular register face, making a 90-degree turn in the process. This configuration is standard when routing supply air from a round trunk or branch duct up through a subfloor or down from a ceiling joist bay into a wall or floor register. HVAC installers and sheet metal mechanics use this boot where a straight drop or a straight-through fitting will not work due to framing constraints or layout requirements. The galvanized finish resists corrosion in typical attic, crawlspace, and basement installations.

This register boot is used in new construction and retrofit residential duct systems where a round branch duct feeds a floor, ceiling, or wall register. The 4 x 12 inch face opening accommodates a standard 4 x 12 inch floor or sidewall register grille. The 7-inch collar connects directly to 7-inch round flex duct or sheet metal branch piping. The 90-degree elbow geometry suits installations where the branch duct runs perpendicular to the finished register opening, which is common in joist-bay and stud-bay supply runs.

Key Features

• 90-degree elbow geometry for perpendicular duct-to-register transitions
• 4 x 12 inch rectangular face opening fits standard residential register grilles
• 7-inch round collar for direct connection to 7-inch flex or rigid round duct
• Galvanized steel construction for corrosion resistance in unconditioned spaces
• Lightweight at 0.50 pounds for easy single-person handling during install

Compatibility

Designed as an OEM-style sheet metal fitting compatible with standard residential forced-air supply duct systems using 7-inch round branch duct and 4 x 12 inch register grilles.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified sheet metal mechanics. Shut down the air handler and confirm the system is depressurized before cutting into existing ductwork. Secure the round collar to the branch duct using sheet metal screws and foil-backed mastic or UL 181-listed duct tape per local mechanical code requirements. Fasten the register face flange to the framing or subfloor before installing the finish register grille.

Technical Specifications

• Fitting Size: 4 x 12 inches
• Collar Diameter: 7 inches
• Elbow Degree: 90 degrees
• Type: 90-Degree Register Boot
• Material: Galvanized Steel
• Weight: 0.50 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: p13-427
