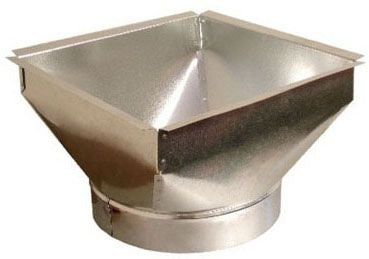

Snappy 82-061006 Galvanized Funnel Floor Register Pan

Product Description

The SNAPPY 82-061006 is a galvanized steel funnel floor register pan designed for ducted HVAC distribution systems. This fitting connects a floor register to the branch duct below, channeling conditioned air up through the floor and into the living space. The pan measures 6 inches by 10 inches at the register opening and drops 6 inches deep to meet the branch duct collar. The galvanized steel construction resists corrosion in unconditioned crawlspaces and basement installations. HVAC sheet metal mechanics and installers use this type of pan as a standard component in residential forced-air duct systems.

This funnel pan suits residential forced-air heating and cooling applications where floor registers are used in place of wall or ceiling diffusers. It is a common component in new construction and renovation duct work where branch runs terminate below a subfloor. The 6 x 10 inch boot size is a widely used register dimension in residential systems, making this pan applicable across a broad range of residential floor register layouts.

Key Features

• Galvanized steel construction for corrosion resistance in crawlspace and basement environments
• 6 inch by 10 inch register opening matches standard residential floor register sizing
• 6 inch pan depth accommodates typical subfloor duct branch connections
• Funnel geometry transitions airflow efficiently from the duct branch to the register face
• Lightweight at 0.80 pounds for easy handling during installation

Compatibility

Designed as an OEM-style replacement and new-construction component for residential forced-air floor register installations requiring a 6 x 10 inch register opening with a 6 inch depth funnel pan.

Installation Notes

Installation is typically performed by licensed HVAC technicians or sheet metal mechanics. Shut down the air handler and any associated heating or cooling equipment before beginning duct work. Secure the pan to the subfloor framing and seal all joints with approved HVAC mastic or metal-backed tape in accordance with local mechanical codes. Confirm register opening alignment before fastening to avoid airflow restriction at the grille face.

Technical Specifications

• Fitting Size: 6 inches x 10 inches
• Pan Depth: 6 inches
• Material: Galvanized Steel
• Weight: 0.80 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 82-061006
