Snappy 2s-2060 Baseboard Short Stackhead 2.25x10 to 6x10

Product Description

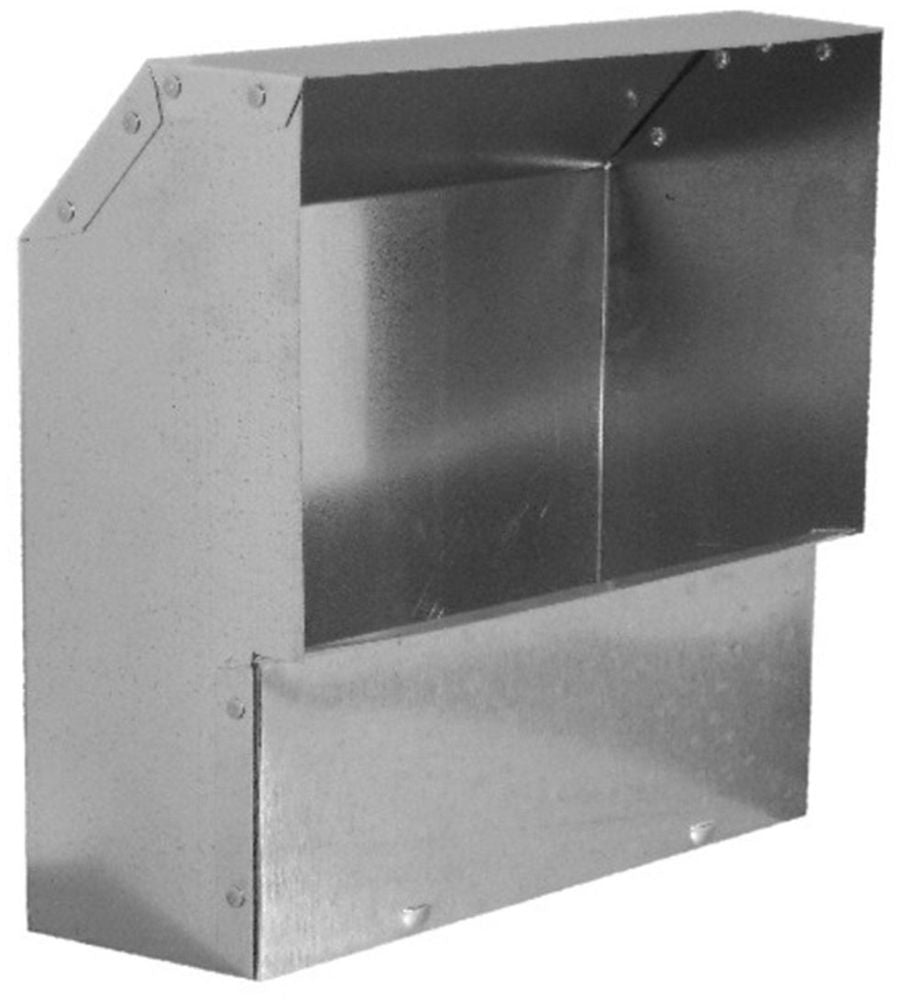

The SNAPPY 2s-2060 is a galvanized steel baseboard short stackhead designed for residential and light commercial HVAC duct systems. It transitions from a 2.25 x 10 inch duct opening to a 6 x 10 inch baseboard register boot, allowing installers to connect round or rectangular supply duct runs to baseboard-style floor or wall registers. The galvanized steel construction resists corrosion and holds up in the temperature cycling common to forced-air heating and cooling applications. HVAC sheet metal installers and duct fabricators use this fitting when a low-profile stackhead transition is required at the baseboard termination point.

This stackhead fitting is suited for new construction and retrofit forced-air duct installations where space is limited and a short-profile transition is needed. It is commonly installed in residential applications where baseboard register boots are used along exterior walls or floor perimeters. The 2.25 x 10 inch inlet connects to standard rectangular supply duct, while the 6 x 10 inch outlet mates with a matching baseboard grille or register.

Key Features

• Transitions a 2.25 x 10 inch duct inlet to a 6 x 10 inch baseboard outlet
• Galvanized steel construction for corrosion resistance and durability
• Short stackhead profile for installations with limited clearance
• Designed for baseboard register boot terminations in forced-air duct systems
• Compatible with standard rectangular supply duct configurations

Compatibility

Designed as an OEM-style sheet metal fitting for residential and light commercial forced-air duct systems requiring a baseboard short stackhead transition at a 2.25 x 10 inch to 6 x 10 inch register boot termination.

Installation Notes

Installation should be performed by a qualified HVAC technician or sheet metal installer in accordance with SMACNA ductwork standards and applicable local mechanical codes. Shut down the air handler or furnace and verify the system is depressurized before fitting installation. Secure all joints with approved sheet metal screws and seal with mastic or UL-listed foil tape to prevent air leakage. Do not use this fitting in applications exceeding its rated gauge or with duct configurations it was not designed to serve.

Technical Specifications

• Inlet Size: 2.25 x 10 inches
• Outlet Size: 6 x 10 inches
• Material: Galvanized Steel
• Profile: Short Stackhead
• Application: Baseboard Register Boot Transition

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 2s-2060
