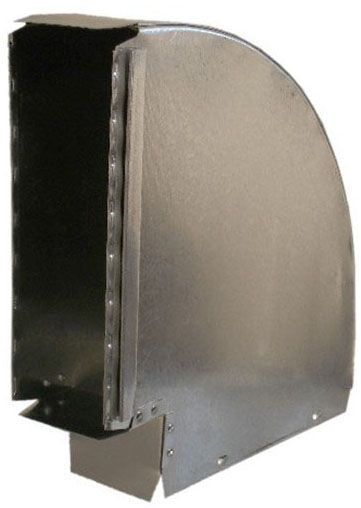

Snappy 290-32 Galvanized 90 Stack Elbow 3.25x12 in

Product Description

The SNAPPY 290-32 is a galvanized steel longway 90-degree stack elbow designed for rectangular sheet metal ductwork in residential and light commercial HVAC systems. Measuring 3.25 inches by 12 inches, this fitting makes a 90-degree turn along the long dimension of the duct, allowing airflow to change direction with minimal restriction in tight spaces. The galvanized construction resists corrosion in typical HVAC environments. Sheet metal installers and HVAC mechanics use this fitting during new construction and retrofit duct fabrication work.

This longway stack elbow is used in low-velocity supply air distribution systems where rectangular trunk or branch ducts must turn 90 degrees within a wall cavity, floor joist space, or between framing members. The 3.25 by 12 inch profile is a standard size that fits common residential stack duct applications, including runs from a central air handler or furnace to floor or wall registers.

Key Features

• 90-degree longway elbow orientation directs airflow along the long axis of the fitting
• 3.25 x 12 inch size fits standard residential stack duct openings
• Galvanized steel construction provides corrosion resistance for HVAC duct applications
• Lightweight at 0.50 pounds for easy handling during installation
• Compatible with standard sheet metal slip and drive or S-cleat connections

Compatibility

Designed as an OEM-style sheet metal fitting for residential and light commercial rectangular duct systems using 3.25 by 12 inch stack duct profiles.

Installation Notes

This fitting is installed by licensed HVAC technicians or sheet metal mechanics as part of a duct fabrication or replacement project. Shut down the air handler or furnace and lock out power before modifying any duct section. Secure connections using drive cleats, S-cleats, or sheet metal screws per local mechanical code requirements. Seal all joints with UL 181-rated mastic or foil tape to meet energy code and prevent air leakage.

Technical Specifications

• Fitting Size: 3.25 x 12 inches
• Elbow Degree: 90 degrees
• Type: Longway
• Material: Galvanized Steel
• Weight: 0.50 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 290-32
