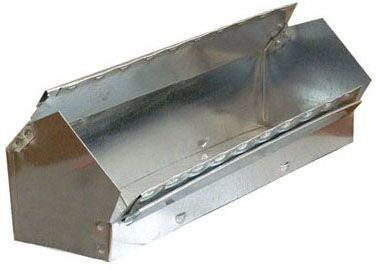

Snappy 206-32 Galvanized 45 Degree Shortway Stack Elbow

Product Description

The SNAPPY 206-32 is a galvanized steel shortway 45-degree stack elbow designed for rectangular HVAC ductwork fabrication and installation. Measuring 3.25 inches by 12 inches, this fitting redirects airflow at a 45-degree angle within low-profile duct runs where a long-radius turn is not practical. The shortway configuration makes it well suited for tight spaces and stack installations. Licensed sheet metal contractors and HVAC installers use this type of fitting in both new construction and retrofit applications.

This elbow is used in residential and light commercial forced-air systems where flat oval or rectangular duct stacks require a 45-degree directional change. It fits into trunk-and-branch layouts and floor or wall stack assemblies. The 3.25-inch by 12-inch profile is a standard size commonly found in residential HVAC duct systems, making it a straightforward replacement or extension component for existing ductwork runs.

Key Features

• Shortway 45-degree turn minimizes duct run length in confined spaces
• Galvanized steel construction resists corrosion in typical HVAC environments
• 3.25-inch by 12-inch fitting size suits standard residential stack applications
• Lightweight at 0.50 pounds for easy single-technician handling during install

Compatibility

Designed as an OEM-style replacement or new-construction component for standard 3.25-inch by 12-inch rectangular galvanized ductwork stack assemblies in residential forced-air HVAC systems.

Installation Notes

Installation is performed by licensed sheet metal or HVAC technicians in accordance with SMACNA duct construction standards. Power down the air handling unit before making any modifications to the duct system. Secure the elbow using sheet metal screws and seal all joints with UL 181-listed mastic or foil tape to maintain system pressure and prevent air leakage. Avoid using standard duct tape as a primary sealant on pressurized duct sections.

Technical Specifications

• Fitting Size: 3.25 inches x 12 inches
• Elbow Angle: 45 degrees
• Type: Shortway
• Material: Galvanized Steel
• Weight: 0.50 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 206-32
