Snappy 206-30 Galvanized 45 Stack Elbow 3.25x10 in

Product Description

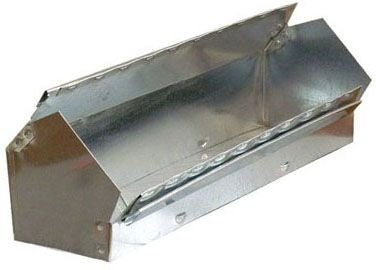

The SNAPPY 206-30 is a galvanized steel shortway 45-degree stack elbow designed for rectangular duct installations in residential and light commercial HVAC systems. This fitting transitions airflow at a 45-degree angle within a compact bend radius, making it the right choice where space constraints prevent use of a standard longway elbow. Sized at 3.25 inches by 10 inches, it fits directly into common sheet metal duct runs and is installed by licensed HVAC technicians and sheet metal mechanics during new construction and retrofit duct work.

This elbow is a standard component in forced-air supply and return duct systems that use rectangular sheet metal ductwork. The shortway configuration is well suited for tight mechanical spaces such as wall cavities, confined ceiling plenums, and basement installations where the duct must turn within a minimal footprint. It is commonly used with standard 3.25-inch by 10-inch duct sections found in residential trunk-and-branch and radial duct layouts.

Key Features

• 45-degree shortway elbow allows direction changes in confined spaces with a tighter bend radius than longway fittings
• Galvanized steel construction resists corrosion in typical HVAC duct environments
• Fits standard 3.25-inch by 10-inch rectangular duct openings for direct integration into existing duct runs
• Lightweight at 0.50 pounds, simplifying single-technician handling during installation
• Shortway orientation reduces overall installed length compared to longway 45-degree fittings

Compatibility

Designed as an OEM-style replacement and standard fitting for residential and light commercial rectangular sheet metal duct systems using 3.25-inch by 10-inch duct sections.

Installation Notes

This fitting is installed by HVAC technicians or sheet metal mechanics as part of a ducted forced-air system. Power down the air handler and close the fuel supply or disconnect electrical service before working on connected duct sections. Secure all seams and joints with listed duct sealant and metal-backed tape per local mechanical codes and SMACNA guidelines. Do not compress or deform the fitting during installation, as dimensional changes will affect airflow and system performance.

Technical Specifications

• Fitting Size: 3.25 inches x 10 inches
• Elbow Degree: 45
• Type: Shortway
• Material: Galvanized Steel
• Weight: 0.50 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 206-30
