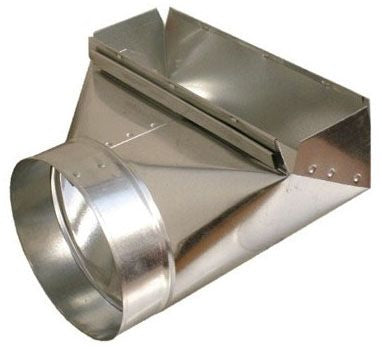

Snappy 13-206 90 Stack Boot 2.25x10 in 6 in Galvanized

Product Description

The SNAPPY 13-206 is a galvanized steel 90-degree stack boot designed for residential and light commercial HVAC duct systems. This fitting connects a floor or wall stack to a rectangular supply plenum or trunk line, transitioning from a 2.25 x 10 inch duct opening to a 6 inch round collar at a 90-degree angle. The galvanized construction resists corrosion in typical forced-air applications. At 0.50 pounds, it is a lightweight component that sheet metal workers and HVAC installers handle during new construction and replacement duct work.

The 13-206 stack boot is used in forced-air heating and cooling systems where a floor register or low-wall register connects to a vertical stack duct. It is a standard fitting in residential new construction and retrofit projects. The 2.25 x 10 inch face matches common floor-register openings, and the 6 inch round throat connects to standard round or spiral trunk takeoffs. It is typically installed at the base of a wall or floor stack during rough-in duct work.

Key Features

• 90-degree elbow configuration routes airflow from vertical stack to horizontal register opening
• 2.25 x 10 inch rectangular face fits standard residential floor and wall register openings
• 6 inch round collar connects to standard round duct or trunk takeoffs
• Galvanized steel construction resists corrosion in conditioned-air environments
• Lightweight at 0.50 pounds for easy single-technician handling during installation

Compatibility

Designed as an OEM-style replacement or new-construction fitting compatible with standard 6 inch round duct systems using a 2.25 x 10 inch rectangular register opening in residential forced-air HVAC applications.

Installation Notes

Stack boots are installed by licensed HVAC technicians or sheet metal workers during duct rough-in or system retrofit. Shut down the air handler and disconnect power before disturbing existing duct connections. Secure the fitting with sheet metal screws and seal all joints with UL-listed foil tape or duct mastic in accordance with local mechanical code requirements. Do not rely on friction fit alone for long-term duct integrity.

Technical Specifications

• Fitting Size: 2.25 x 10 inches
• Round Collar Diameter: 6 inches
• Elbow Degree: 90 degrees
• Type: 90 Stack Boot
• Material: Galvanized Steel
• Weight: 0.50 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 13-206
