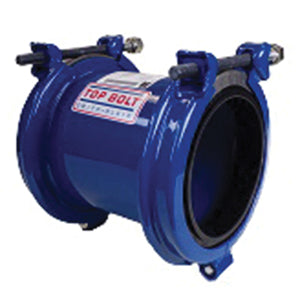

Smith - Blair 421-06560760-031 Top Bolt Coupling 6

Product Description

The Smith - Blair 421-06560760-031 is a two-bolt coupling designed for connecting pipes. This coupling features removable and replaceable inner gaskets, allowing for easy installation and expanded product range. It is ideal for applications that require both a wide range of sizes and easy disassembly. The design allows for stab insertion of pipe ends, utilizing one bolt on each end for secure tightening.

• Removable inner gasket for larger outside diameters.
• Bi-directional inner gasket can be reinstalled.
• Facilitates stab insertion of pipe ends.

Product Highlights

The Smith - Blair coupling is suitable for various plumbing applications and is built for reliability.

Product Information

Standard Information

• Series: 421
• Type: Wide Range Coupling / Clamp

Technical Specifications

• Material: Carbon Steel
• Size: 6
• Nominal Size: 6 inches
• Pressure Rating: Up to 260 psi
• Standard Approvals: A285A or A36 Flange/Sleeve, ASTM A283C, ASTM D2000 Gasket, ASTM A240 Armor, AWWA C219, AWWA C213, NSF/ANSI 61/372
