Smith-Blair 31500048014000 Saddle Clamp (4 in Pipe, 2 in NPT Outlet)

Product Description

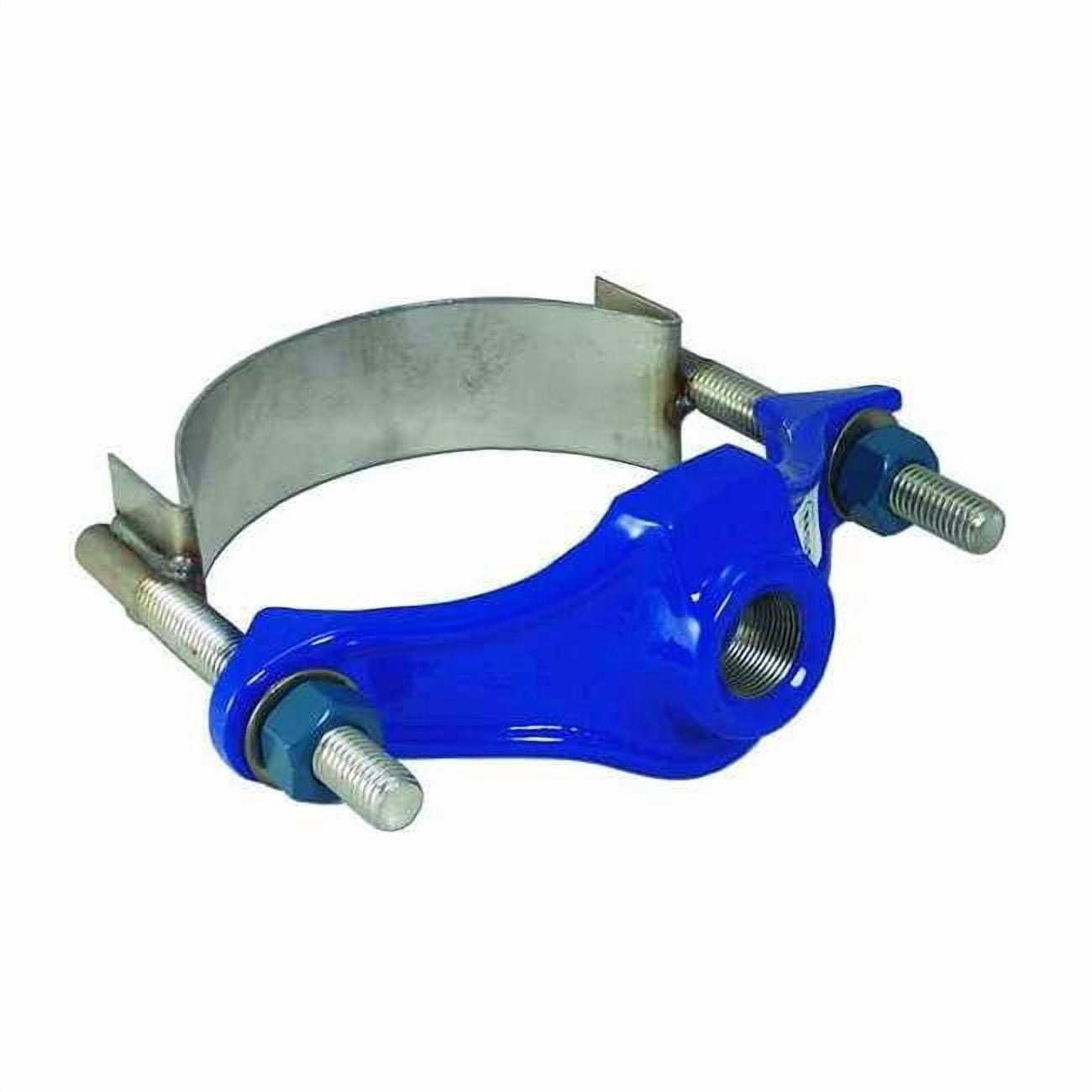

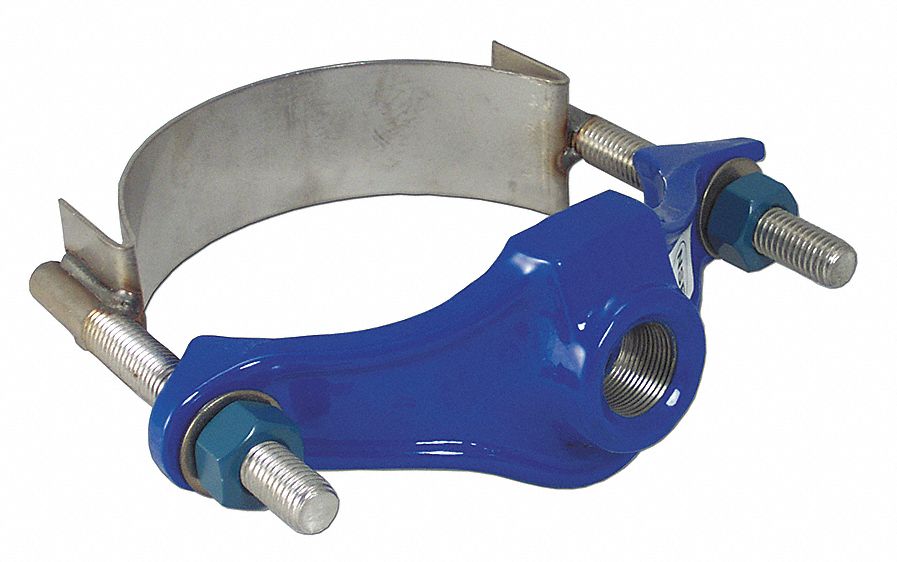

The Smith-Blair 31500048014000 saddle clamp is a single-strap service saddle for 4 in nominal pipe with a 2 in NPT outlet. It features a ductile cast iron clamp body with epoxy finish, stainless steel strap and hardware, and a Buna N (NBR) gasket. The clamp fits pipe outside diameters from 4 13/32 in to 4 13/16 in and is rated to 200 psi operating pressure and -20�F to 180�F.

• Ductile cast iron body with epoxy finish; stainless steel strap, bolts and nuts (nuts grade 304); Buna N gasket
• 2 in NPT outlet with 5/8"-4 thread; required hole size 2 in; fits 4 in nominal pipe (OD 4 13/32 in�4 13/16 in)
• Rated 200 psi maximum operating pressure (300 psi maximum pressure), operating temperature -20�F to 180�F; meets ASTM A536, AWWA C800, NSF/ANSI 372, NSF/ANSI 61; UL listed

Product Highlights

Single-strap ductile iron saddle clamp for 4 in pipe with 2 in NPT outlet and Buna N gasket

Product Information

Standard Information

• Brand: SMITH - BLAIR
• Manufacturer Part Number: 31500048014000
• Country of Origin: China

Technical Specifications

• Brand: Smith-Blair
• Manufacturer Part Number: 31500048014000
• Product Type: Saddle Clamp
• Material: Ductile cast iron
• Clamp Finish: Epoxy
• Strap Material: Stainless steel
• Bolt Material: Stainless steel
• Nut Material: Stainless steel
• Nut Material Grade: 304
• Gasket Material: Buna N (NBR)
• Pipe Size (nominal): 4 in

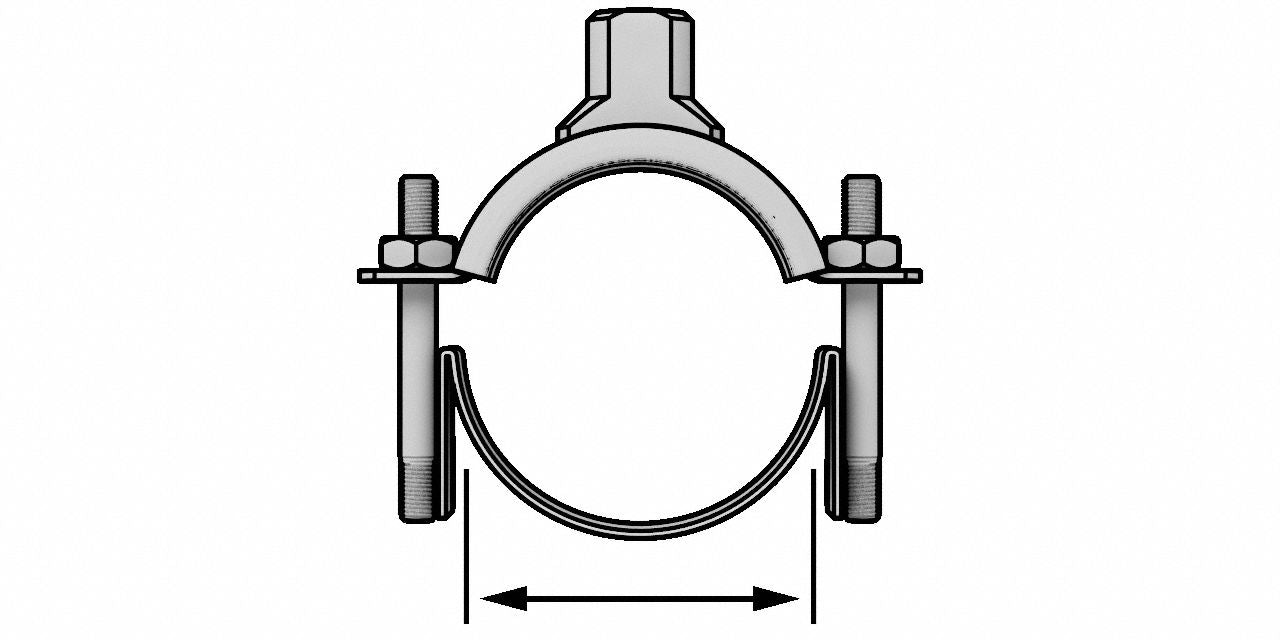

• For Minimum Outside Diameter: 4 13/32 in
• For Maximum Outside Diameter: 4 13/16 in
• Outlet Pipe Size: 2 in
• Outlet Connection Type: NPT
• Outlet Thread Size: 5/8"-4
• Required Hole Size: 2 in
• Maximum Operating Pressure: 200 psi
• Maximum Pressure (absolute): 300 psi
• Operating Temperature Range: -20�F to 180�F
• Minimum Operating Temperature: -20�F
• Maximum Operating Temperature: 180�F
• Number Of Straps: 1
• For Material Type: Asbestos cement; Cast iron; Ductile iron; PVC; Steel
• For Fluid Type: Water; Other chemicals
• Standards / Certifications: ASTM A536; AWWA C800; NSF/ANSI 372; NSF/ANSI 61; UL Listed
• Dimensions (L x W x H): 6.50 in x 7.50 in x 3.20 in
• Country of Origin: China
• UNSPSC: 31162906
