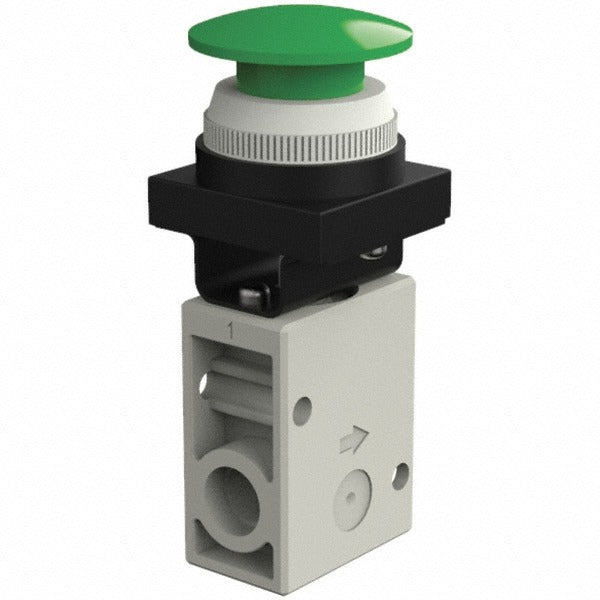

Smc Pneumatics VM230-N02-30GA 3-way Valve Push Button

Product Description

The SMC PNEUMATICS VM230-N02-30GA is a mechanically operated pneumatic valve designed for directional air flow control in compressed air systems. It features a 3-way, 2-position configuration with a push button mushroom-style actuator, allowing manual control of air circuits without electrical actuation. The valve offers a Cv rating of 0.87, providing reliable flow capacity for standard pneumatic applications. With 1/4 inch NPT inlet and outlet ports and a 3-port body, it is well suited for controlling cylinder extend/retract functions or vent-to-exhaust circuits. This valve is typically installed by industrial maintenance technicians and pneumatic systems specialists.

This valve is appropriate for use in industrial pneumatic control panels, machine tool applications, and light manufacturing environments where manual actuation of air circuits is required. The mushroom push button style is commonly used in operator control stations and equipment interlocks where a large, easy-to-actuate button is preferred. The green color coding aids in visual identification within multi-valve assemblies. It is suited for 3-position circuit configurations where a neutral or center state is needed in addition to the two actuated positions.

Key Features

• 3-way, 2-position valve configuration for directional air control
• Mushroom-style push button actuator for easy manual operation
• Cv rating of 0.87 for consistent flow performance
• 1/4 inch NPT inlet and outlet ports for standard pneumatic plumbing
• Green color coding for quick visual identification in valve banks
• 3-port body supports 3-position circuit designs

Compatibility

Designed as an OEM-style mechanically operated valve for standard 1/4 inch NPT pneumatic systems requiring manual push button actuation in 3-way directional control applications.

Installation Notes

Installation should be performed by a qualified industrial maintenance technician or pneumatic systems specialist. Depressurize the air supply and bleed all downstream pressure before removing or installing any pneumatic valve. Verify that all NPT thread connections are sealed with appropriate thread sealant rated for compressed air service and that the valve is oriented to match the intended flow path. Follow all applicable safety standards and equipment manufacturer guidelines during installation.
