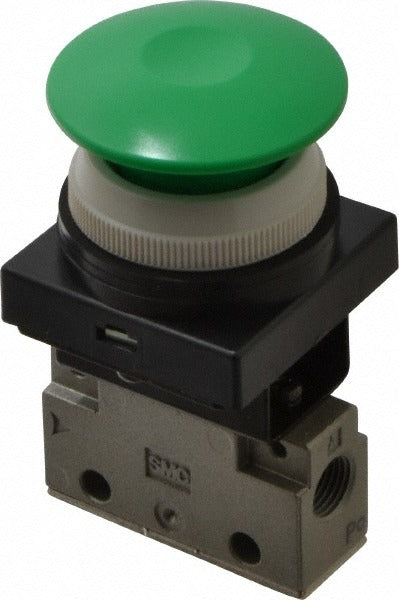

Smc Pneumatics VM130-N01-30GA 3-way Valve Push Button

Product Description

The SMC PNEUMATICS VM130-N01-30GA is a mechanically operated pneumatic valve designed for 3-way, 2-position directional control in compressed air systems. It uses a push button mushroom-style actuator for manual operation, making it well suited for machine control panels, pneumatic circuits, and industrial automation applications. The valve features a 1/8 inch NPT inlet and a Cv rating of 0.110, providing controlled airflow in compact pneumatic lines. Installation and service are handled by industrial maintenance technicians and automation system integrators working on pneumatic control circuits.

This valve is used in industrial and light commercial pneumatic systems where manual directional control of compressed air is required. Typical applications include machine tool control, pneumatic actuator circuits, and control panel assemblies where a compact 3-way valve with a mushroom push button is specified. The green color coding aids visual identification on multi-valve manifold assemblies and control panels. It is commonly installed in panel-mount or inline configurations on low-pressure pneumatic circuits.

Key Features

• 3-way, 2-position valve configuration for directional airflow control
• Mushroom-style push button actuator for manual operation
• 1/8 inch NPT inlet for standard compressed air line connections
• Cv rating of 0.110 for controlled flow in compact pneumatic circuits
• Green actuator color for easy visual identification in multi-valve installations
• 3-port design supports supply, work, and exhaust flow paths

Compatibility

Designed as an OEM-style replacement or direct-use component for industrial pneumatic control circuits requiring a 3-way, 2-position mechanically operated valve with a 1/8 inch NPT connection.

Installation Notes

Installation is performed by qualified pneumatic or industrial maintenance technicians. Depressurize the pneumatic system completely before removing or installing any valve. Apply thread sealant appropriate for pneumatic service to NPT threads and avoid overtightening, which can crack valve bodies. Verify that system operating pressure does not exceed the valve manufacturer rating before returning the circuit to service.
