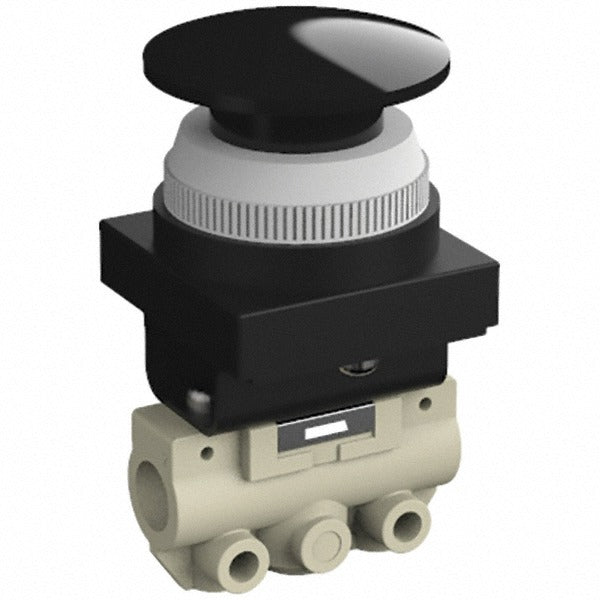

Smc Pneumatics VM120-N01-30BA 2-way Valve Push Button

Product Description

The SMC PNEUMATICS VM120-N01-30BA is a mechanically operated pneumatic valve designed for manual control of compressed air flow in industrial and automation systems. It operates as a 2-way, 2-position valve, meaning it opens or closes a single flow path depending on actuator state. The push button mushroom-style actuator provides a large, easy-to-press contact surface suited for operator-controlled or safety-stop applications. With a Cv rating of 0.110 and a 1/8 inch NPT inlet, this valve is sized for small-bore pneumatic circuits where precise, low-flow manual control is required. The valve body is black. Licensed pneumatic system technicians and automation maintenance professionals are the typical installers.

This valve is well suited for use in light-duty pneumatic control panels, machine guarding systems, and manual-override circuits in industrial automation environments. The mushroom-style push button actuator is commonly found in emergency-stop or operator-interface stations where a large actuation surface improves ergonomics and response time. The 1/8 inch NPT port size fits standard small-bore pneumatic tubing and manifold connections typical of compact control circuits in both OEM machine builds and field installations.

Key Features

• 2-way, 2-position operation for direct open or closed flow control
• Mushroom push button actuator for high-visibility, easy manual actuation
• 1/8 inch NPT inlet for compatibility with standard small-bore pneumatic fittings
• Cv rating of 0.110 suited for low-flow compressed air circuits
• Black valve body for standard industrial panel integration

Compatibility

Designed as an OEM-style replacement or direct-install manual valve for small-bore pneumatic control circuits using 1/8 inch NPT connections.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician familiar with compressed air circuit design. Depressurize and lock out the pneumatic system before installing or replacing this valve. Ensure NPT threads are wrapped with appropriate thread sealant tape and tightened to fitting manufacturer specifications using proper hand tools. Verify flow direction and port labeling before final connection and system re-pressurization.
