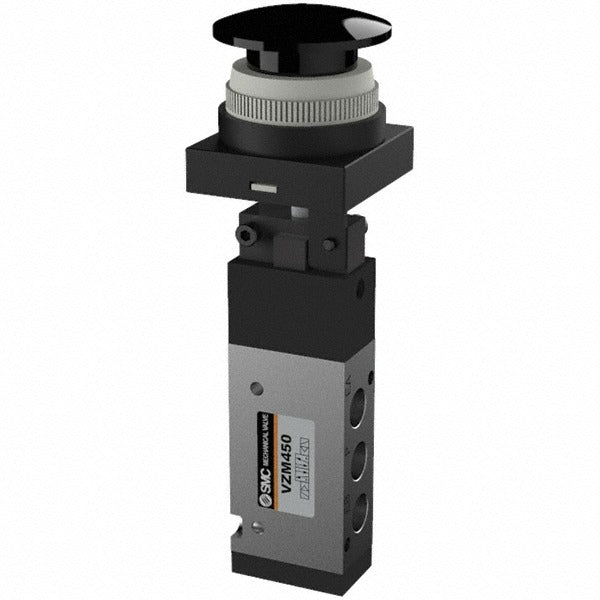

Smc Pneumatics NVZM450-N01-30B Push Button Valve 5 Port

Product Description

The SMC PNEUMATICS NVZM450-N01-30B is a mechanically operated pneumatic directional control valve featuring a push button mushroom actuator. It controls airflow in pneumatic circuits by shifting between positions when the mushroom-head button is manually depressed. The valve uses a 1/8 inch NPT inlet, offers a Cv rating of 0.55, and provides 5 ports across 4 positions. It is designed for use in industrial pneumatic systems where manual actuation is required and is typically installed by pneumatic system technicians or industrial maintenance professionals.

This valve is suited for light industrial and automation applications where manual control of pneumatic actuators, cylinders, or air-operated equipment is needed. The mushroom-style push button provides a larger contact surface for easy manual operation, making it practical in panel-mount or machine control scenarios. The black housing and compact form factor allow integration into tight control enclosures or pneumatic manifold assemblies.

Key Features

• Mushroom push button actuator for reliable manual pneumatic control
• 1/8 inch NPT inlet connection for standard pneumatic plumbing
• Cv rating of 0.55 for controlled airflow capacity
• 5-port, 4-position configuration for versatile circuit control
• Black housing construction for panel and machine integration

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial pneumatic directional control valve applications requiring a 1/8 inch NPT push button mushroom actuator valve.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or industrial maintenance professional. Depressurize the pneumatic circuit and isolate all air supply before removing or installing this valve. Use appropriate thread sealant on NPT connections and avoid overtightening to prevent port damage. Verify port numbering and circuit diagram alignment before returning the system to service.
