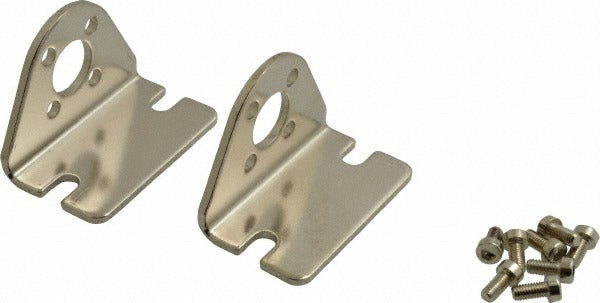

Smc Pneumatics NCG-L032 Air Cylinder Foot Mount 1-1/4 in Bore

Product Description

The SMC PNEUMATICS NCG-L032 is a foot mount accessory designed for use with NCGL-series air cylinders with a 1-1/4 inches bore. Foot mounts secure pneumatic cylinders in a fixed, inline position by anchoring the cylinder body to a surface through a base-mounted bracket. This type of mounting hardware is a standard component in pneumatic motion control assemblies found in industrial automation, manufacturing equipment, and process machinery. Installation is typically performed by maintenance technicians and automation specialists working with compressed air systems.

This foot mount is intended for use with NCGL-series pneumatic cylinders featuring a 1-1/4 inches bore diameter. It is suited for industrial applications where a rigid, surface-mounted cylinder installation is required. The part is packaged individually and is commonly used in equipment assembly, fixture builds, and pneumatic actuator replacement projects across light and medium industrial environments.

Key Features

• Foot mount style provides stable, surface-anchored cylinder positioning
• Designed specifically for NCGL-series air cylinders with 1-1/4 inches bore
• Allows inline mounting orientation for straightforward actuator integration
• Sold as an individual unit for single-cylinder retrofit or new assembly

Compatibility

Designed for use with SMC PNEUMATICS NCGL-series air cylinders with a 1-1/4 inches bore size.

Installation Notes

Installation should be performed by a qualified maintenance technician or pneumatic systems professional. Before mounting or servicing any pneumatic cylinder accessory, depressurize the air supply line and verify zero residual pressure in the system. Secure all mounting fasteners evenly to ensure proper alignment and prevent side-loading of the cylinder rod during operation. Refer to the equipment manufacturer documentation and applicable OSHA or facility safety standards for pneumatic system service procedures.
