Smc Pneumatics NCG-D063 Double Clevis Mount 2.5 in Bore

Product Description

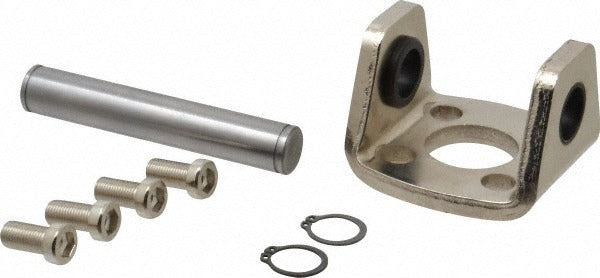

The SMC PNEUMATICS NCG-D063 is a double clevis mounting accessory designed for use with SMC NCGD series air cylinders with a 2.5-inch bore. A double clevis mount attaches to the cap end of a pneumatic cylinder, allowing the cylinder body to pivot on a pin or shaft. This enables the actuator to follow angular motion during extension and retraction, which is critical in linkage-driven and machine fixture applications. The part weighs 2.5 pounds and is a direct-fit accessory matched to the NCGD cylinder family. Installation is handled by industrial maintenance technicians and pneumatic system integrators.

This double clevis is suited for industrial automation, material handling, and fixture applications where a pneumatic cylinder must articulate through an arc during operation. It is used wherever rigid inline mounting is not possible and the actuator must float to accommodate mechanical alignment. The accessory mounts at the cylinder cap end and is intended for use exclusively with SMC NCGD series cylinders in the 2.5-inch bore size. It is appropriate for both new builds and replacement service on existing pneumatic circuits.

Key Features

• Double clevis design allows pivoting motion on a cross-pin for angular cylinder travel
• Matched fit for SMC NCGD series 2.5-inch bore air cylinders
• Cap-end mounting keeps the actuator free to follow linked or offset load paths
• Weighs 2.5 pounds for a robust, durable installation
• Direct OEM-style accessory replacement for field service and new assembly

Compatibility

Designed for use with SMC NCGD series air cylinders with a 2.5-inch bore size.

Installation Notes

This accessory is installed by pneumatic system technicians or industrial maintenance personnel. Before servicing or replacing any cylinder mount, depressurize the pneumatic circuit completely and verify that all stored mechanical energy in the actuator load is relieved. The clevis pin and retaining hardware used with this mount must be appropriate for the applied load and cylinder force rating. Follow the equipment manufacturer's torque and assembly specifications for the mounting fasteners.
